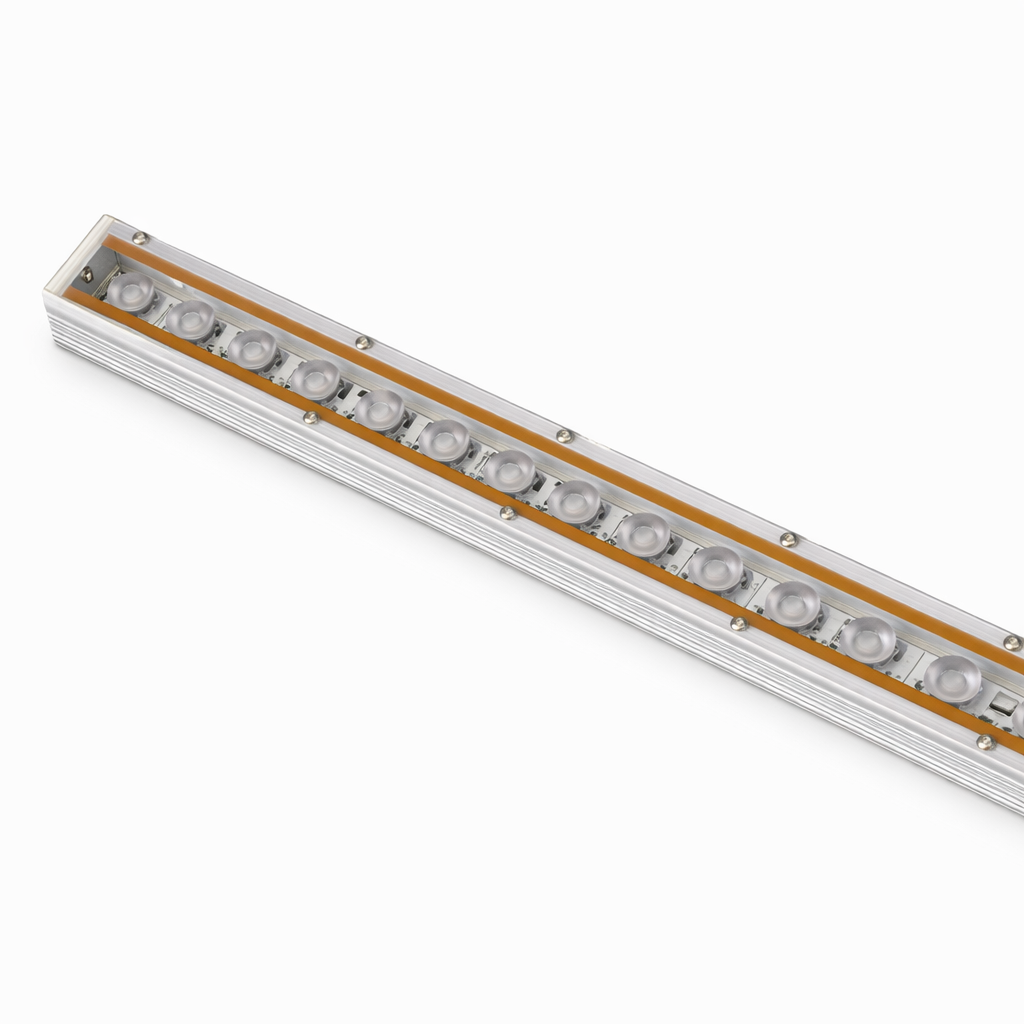

Zuma - ZVfx

  • Zuma - ZVfx - Lighting Fixtures - Prolume Lighting
1 1
SKU: Zuma - ZVfx

Zuma - ZVfx is a wet-rated linear LED with a 1.2"-pitch engine and selectable beam optics, delivering up to 909 lm in standard or high output. Heavy-duty aluminum, UV polycarbonate lens, and onboard 0–10V dimming handle extreme outdoor environments.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Constructed using an industrial grade aluminum extrusion built to withstand the test of time, the Zuma - ZVfx is an ideal solution with a 1.2-inch pitch light engine that provides general illumination and pathway lighting for extreme environmental linear LED lighting applications.  It is offered with either a standard or high output light engine configuration and delivers up to 909 lumens.

    ZVfx is housed in a heavy duty extruded aluminum envelope and protected by a UV resistant polycarbonate lens.  It’s available with several optical options to deliver the desired beam sculpting. It includes onboard 0 – 10 VDC dimming and the ability to be mounted in either an articulating or fixed position. ZVfx is available in one inch increments up to four feet in length. It can be configured either in series or parallel to a single driver.

    Features

    • Made in America quality and craftsmanship
    • Standard or high output options
    • UV stabilized polycarbonate lens
    • Five standard CCTs plus options for colored customization
    • Daisy chain configurable wiring to a single driver
    • Thermal monitoring and current control combine to maintain
      light levels while guarding against overheating

    Technical Specifications

    Parameter Specification
    Lumen Output 516 to 909
    CRI 80 – 90+
    Beam Angle 15° | 40° | 10 x 50°
    Lens Clear
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 12” min to 48” max
    Incremental Length 1"
    Environmental Wet
