SKU: Zuma - ZEfx

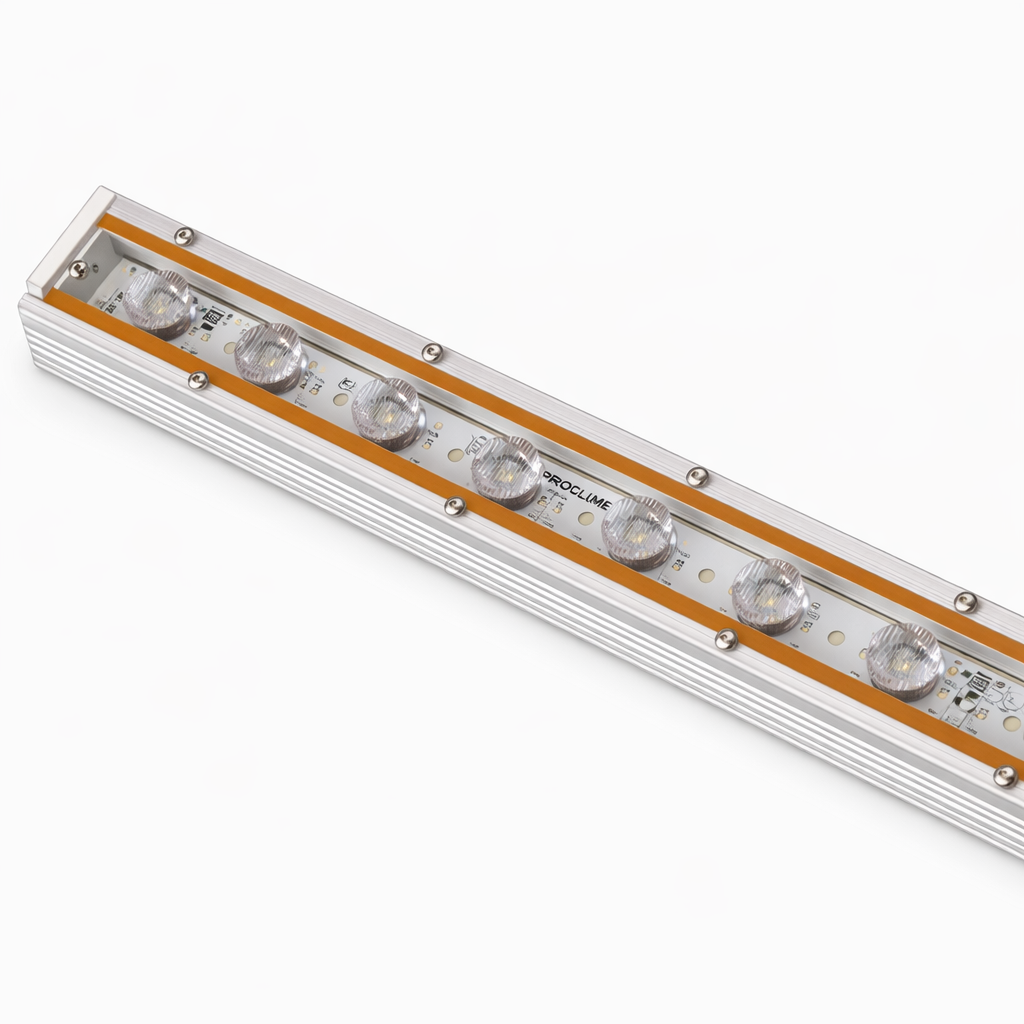

Zuma - ZEfx is a wet-rated linear LED with a 2"-pitch engine and selectable optics (15°, 40°, 10×50°) delivering up to 469 lm. Heavy-duty aluminum housing, UV polycarbonate lens, and onboard 0–10V dimming suit extreme outdoor accent applications.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Constructed using an industrial grade aluminum extrusion built to withstand the test of time, the Zuma - ZEfx linear LED light fixture is an ideal solution with a two-inch pitch light engine that provides general illumination and pathway lighting for extreme environmental applications.  The ZEfx is offered with either a standard or high output light engine configuration and delivers up to 469 lumens.

    It is housed in a heavy duty extruded aluminum envelope and protected by a UV resistant polycarbonate lens. The ZEfx is available with several optical options to deliver the desired beam sculpting. It includes onboard 0 – 10 VDC dimming and the ability to be mounted in either an articulating or fixed position. ZEfx is offered in one-inch increments up to four feet in length and can be configured either in series or parallel to a single driver.

    Features

    • Made in America quality and craftsmanship
    • UV stabilized polycarbonate lens
    • 15°, 40° and 10×50° beam sculpting opions
    • Five standard CCTs plus options for colored customization
    • Daisy chain configurable wiring to a single driver
    • Thermal monitoring and current control combine to maintain light levels while guarding against overheating

    Technical Specifications

    Parameter Specification
    Lumen Output 224 to 469
    CRI 80 – 90+
    Beam Angle 15° | 40° | 10 x 50°
    Lens Clear
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 12” min to 48” max
    Incremental Length 1"
    Environmental Wet
