SKU: Zuma - ZE

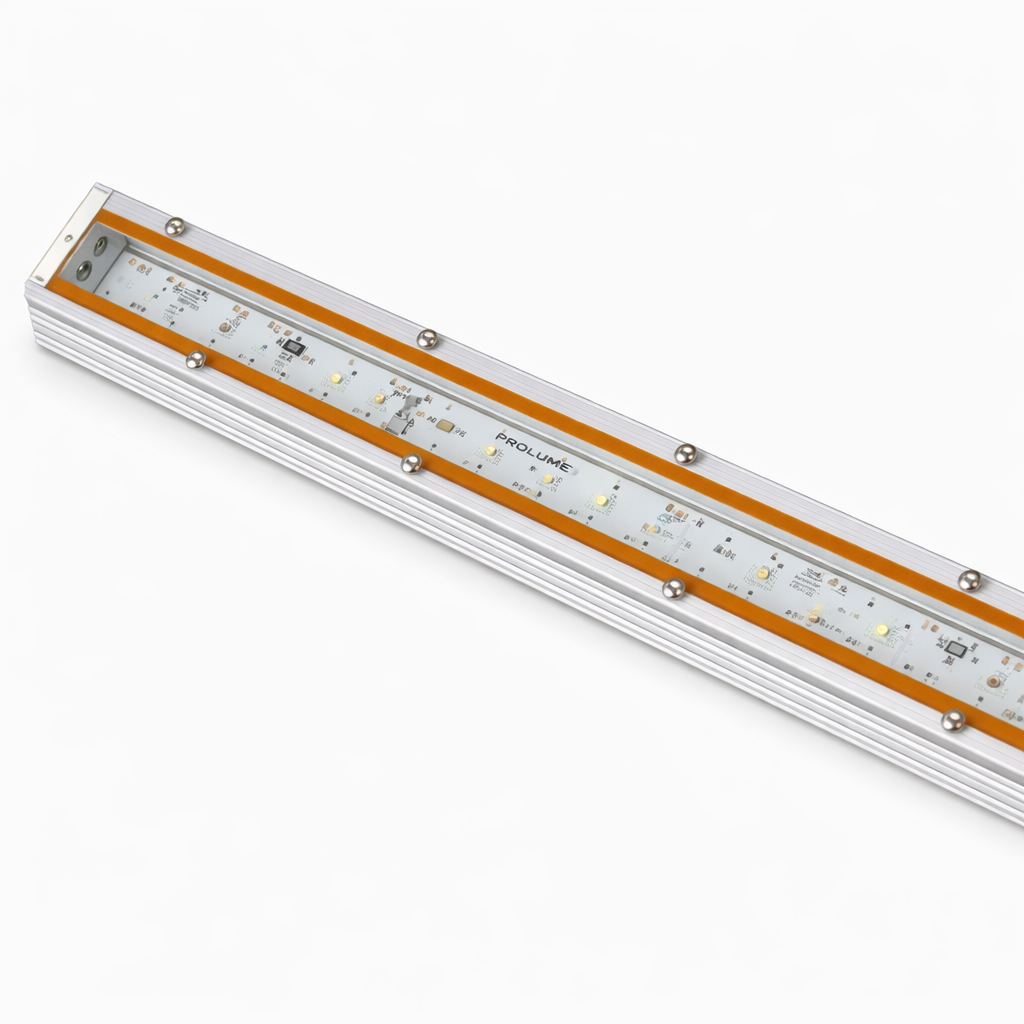

Zuma - ZE is a wet-rated linear LED with a 2"-pitch engine and 115° optics delivering up to 744 lm. Heavy-duty aluminum housing, UV-resistant polycarbonate lens, onboard 0–10V dimming, and thermal monitoring suit extreme outdoor environments.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    The Zuma - ZE linear LED light fixture is offered with either a standard or high output light engine configuration and delivers up to 744 lumens. It is housed in a heavy duty extruded aluminum envelope and protected by a UV resistant polycarbonate lens.  It will perform in the challenging weather conditions.  The ZE boasts onboard 0 – 10 VDC dimming and the ability to be mounted in either an articulating or fixed position.  By far, the ZE becomes a reliable and versatile solution for architects, specifiers and lighting designers to use with confidence.

    ZE is available in one-inch increments up to four feet in length. It can be configured either in series or parallel to a single driver.  It will easily meet the needs of many general illumination applications with demanding environmental conditions.

    Features

    • Made in America quality and craftsmanship
    • UV stabilized polycarbonate lens
    • Five standard CCTs plus options for colored customization
    • Daisy chain configurable wiring to a single driver
    • Thermal monitoring and current control combine to maintain light levels while guarding against overheating

    Technical Specifications

    Parameter Specification
    Lumen Output 379 to 744
    CRI 80 – 90+
    Beam Angle 115°
    Lens Clear
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 12” min to 48” max
    Incremental Length 1"
    Environmental Wet
