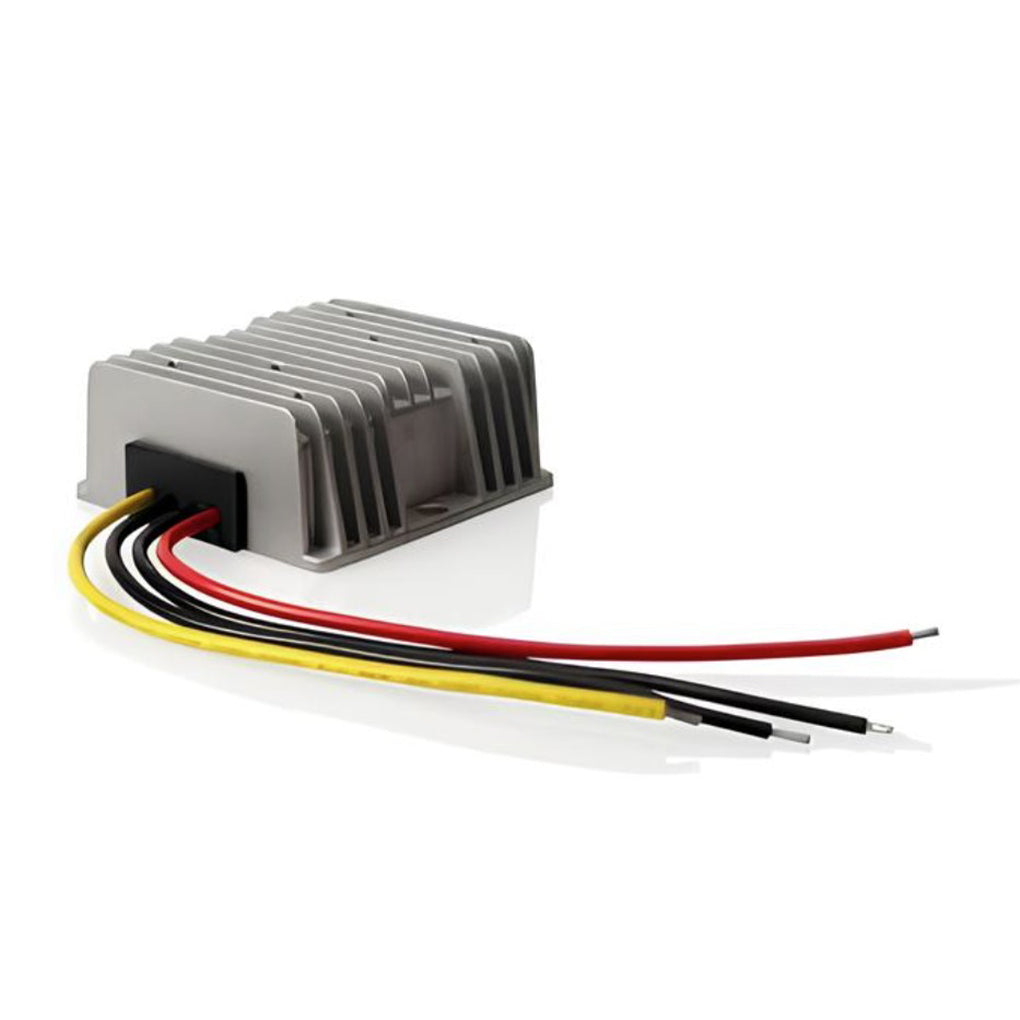

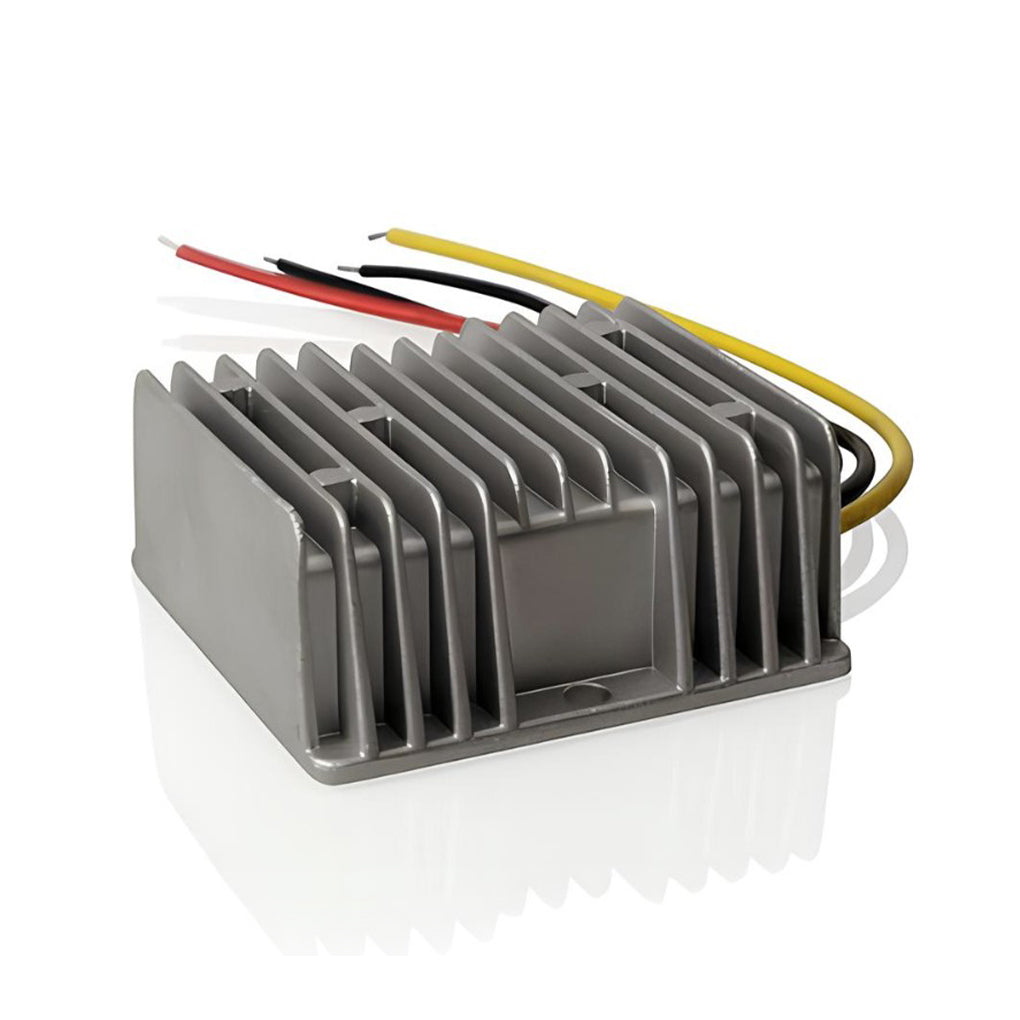

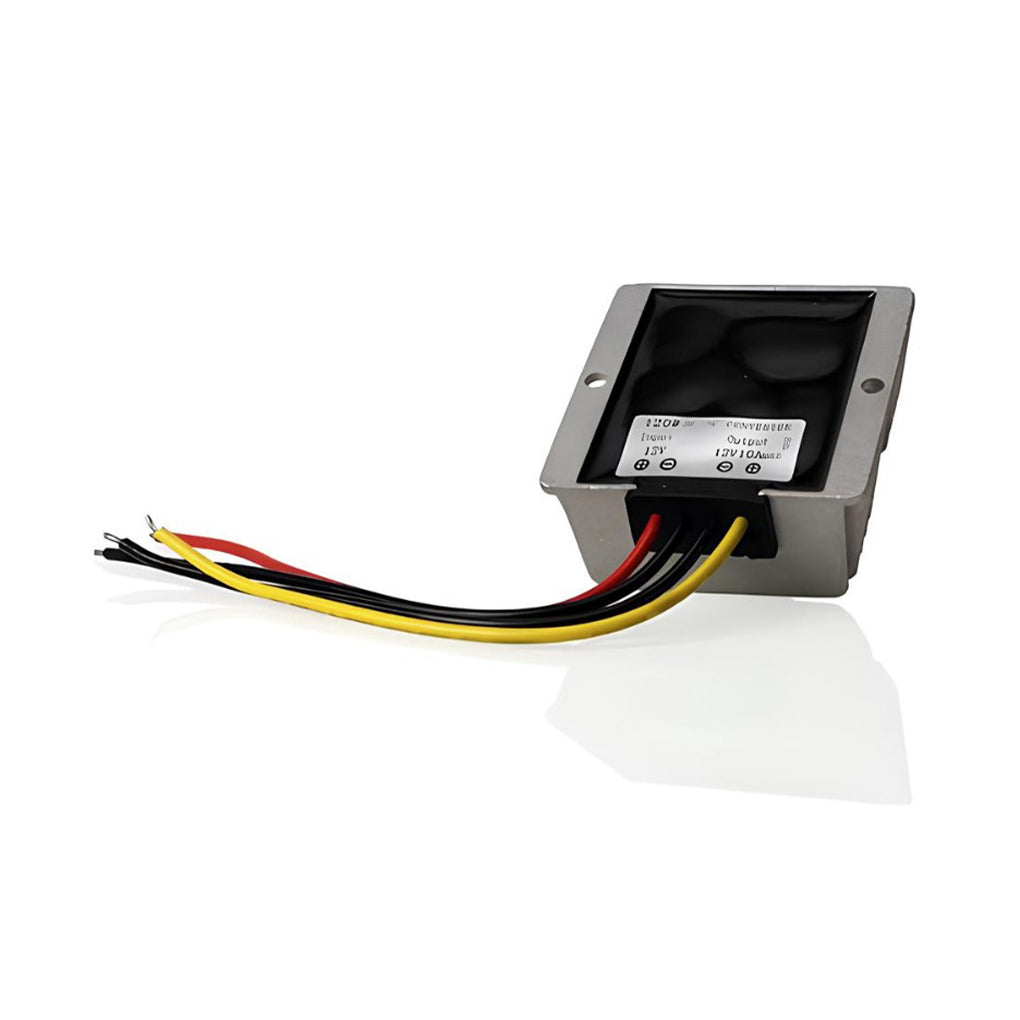

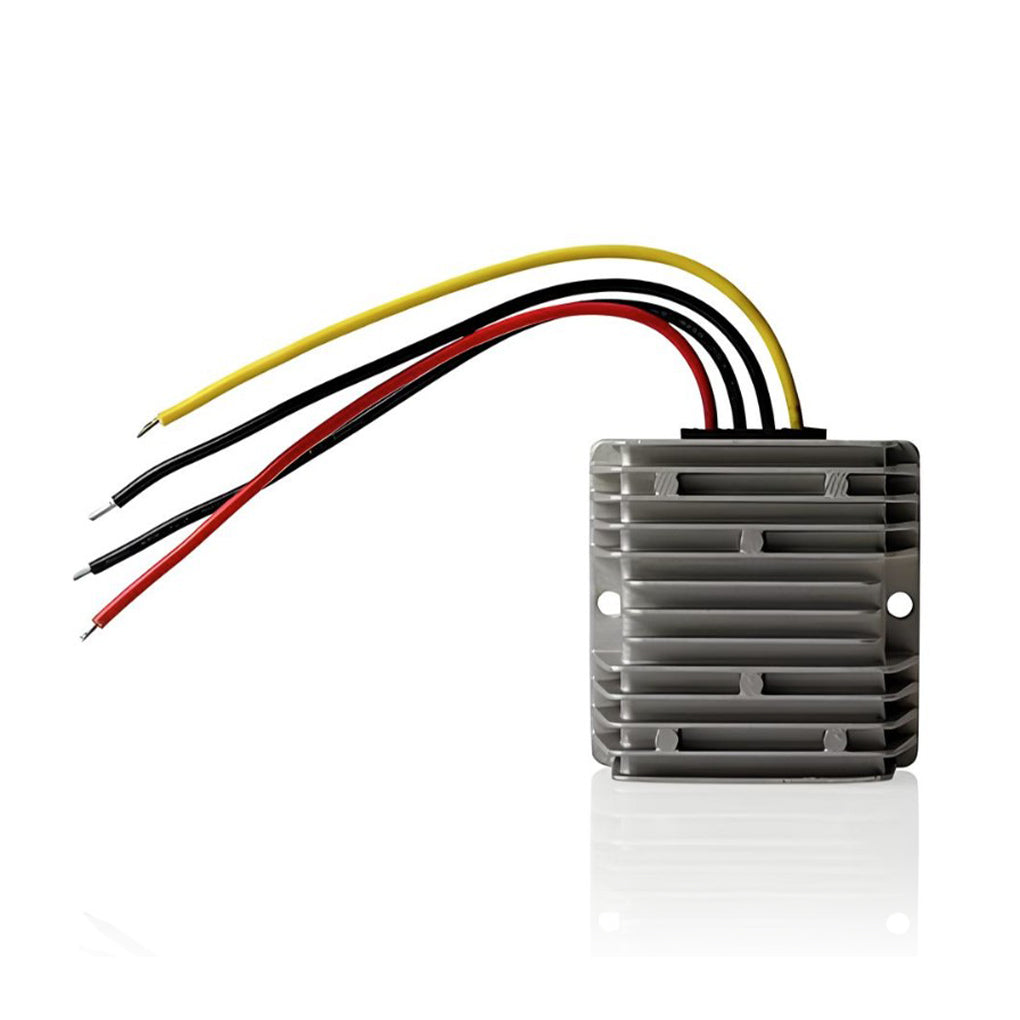

Voltage Protector and Regulator

1 4
SKU: —

Protect your devices from voltage spikes with our versatile Voltage Protector, also known as a voltage regulator, reducer, or converter. Available in 60W and 120W power output options, this unit ensures a constant 12V output. Engineered for durability, it features a heatsink and an IP68 waterproof rating, making it ideal for harsh environments.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Compact and lightweight, our voltage protector is easy to install with four connection wires and two mounting holes. It boasts a range of safety features, including protection from over-voltage, short-circuits, over-current, and over-temperature.

    Perfect for automotive, boating, ATVs, golf carts, and solar lighting applications, this reliable device is designed to keep your power stable and secure.

    Pro Tip: For both of these units, it's recommended to load them to no more than 80% of their rating to avoid startup and flashing/strobing issues.

    Technical Specifications

    Part # Input Voltage Output Voltage Output Current Output Watts (L) x (W) X (H) mm
    LO-12V-REG-5A 9-36 VDC 12V 0~5A 60W 75mm X 75mm X 32mm
    LO-12V-REG-10A 18-80 VDC 12V 0~10A 100W 75mm X 75mm X 32mm
