PROSquare3 Wall

  • PROSquare3 Wall - Wall Light Fixtures - Prolume Lighting
  • PROSquare3 Wall - Wall Light Fixtures - Prolume Lighting
  • PROSquare3 Wall - Wall Light Fixtures - Prolume Lighting
  • PROSquare3 Wall - Wall Light Fixtures - Prolume Lighting
1 4
SKU: PROSquare3 Wall

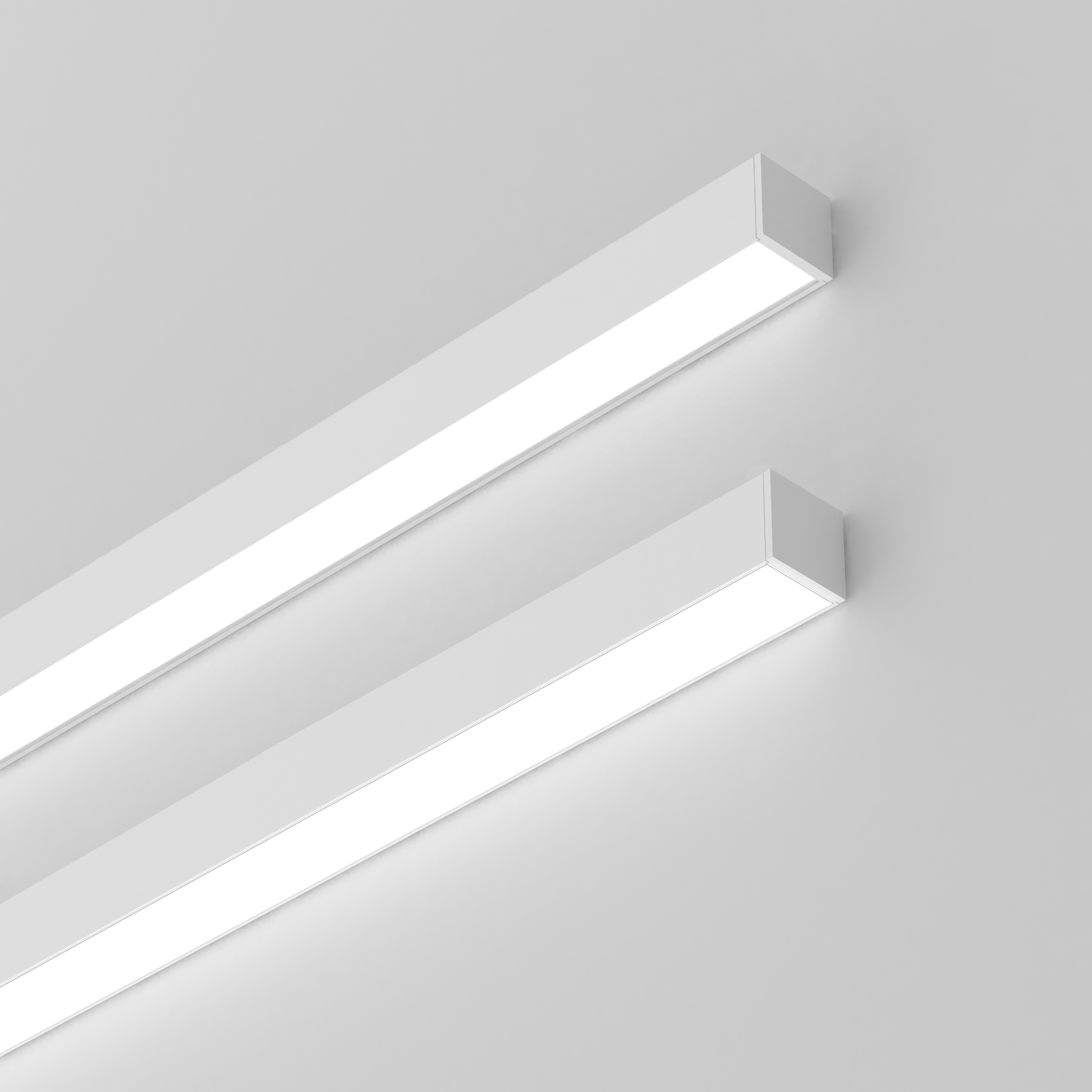

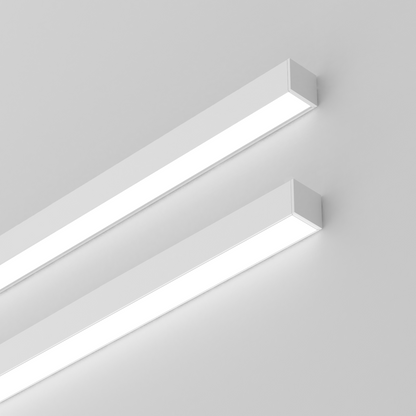

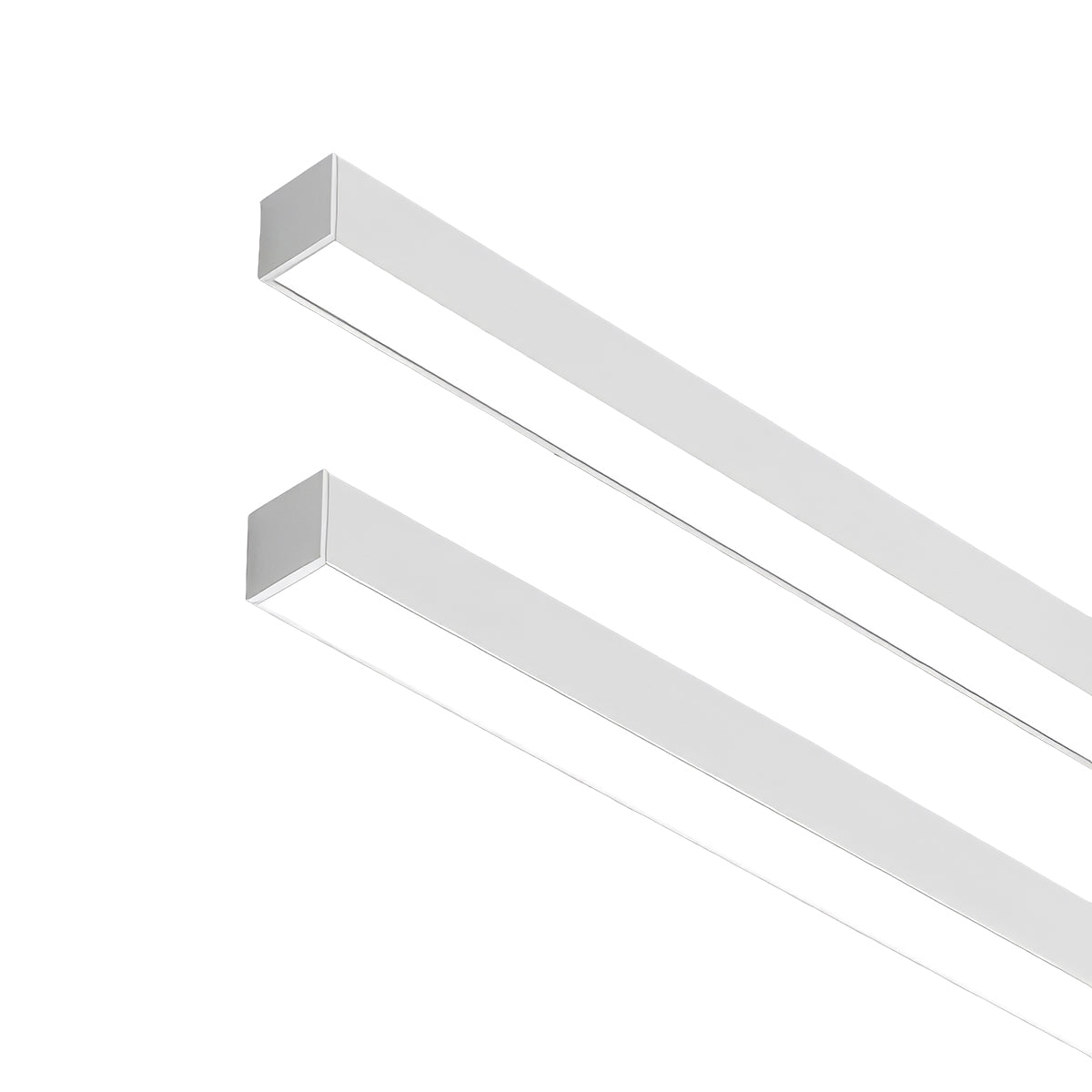

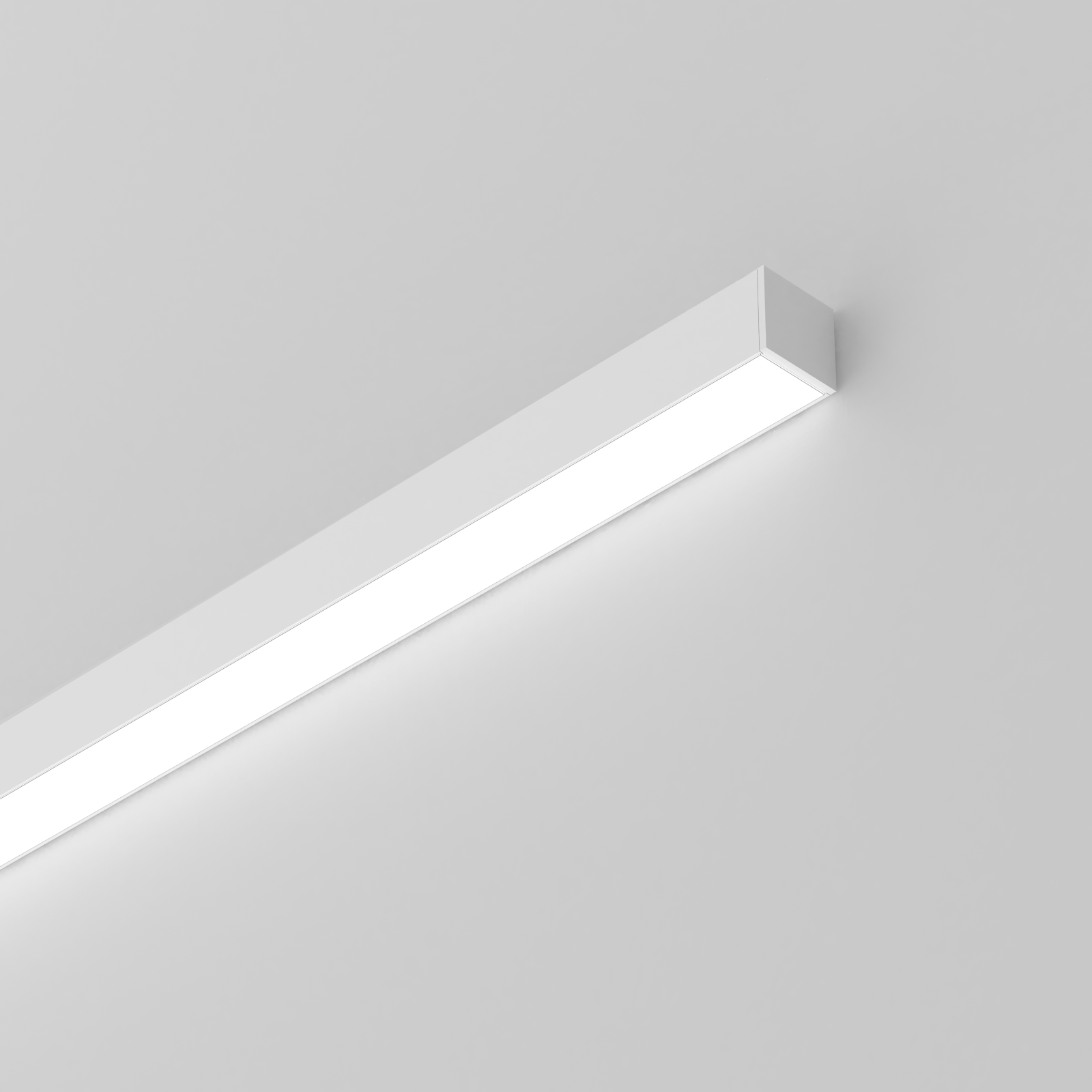

PROSquare3 Wall is a 3×3" wall-mount linear LED delivering 1,500 lm/ft at 150 lm/W with SmartBeam® optics for symmetric and asymmetric distributions. It supports direct and indirect light with field-serviceable components and BABAA compliance.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    PROSquare3 Wall brings SmartBeam® capabilities to a 3” form factor with an integral driver providing best-in-class efficiency and beam control options. The PROSquare3 Wall is designed to be specification grade with a wide range of beam options, high CRI, and circadian options. The 3″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROSquare3 Wall offers a range of accessories, mounts, and finishes that provide an easy route to customization and performance enhancements.

    Features

    • 3″ aperture
    • 1,500 lm/ft, 150 lm/W efficacy
    • Install onto drywall or grid t-Bar
    • Field serviceable driver, LED engine and optics
    • Supports direct & indirect light
    • Symmetric and asymmetric beam distributions
    • BABAA compliant, designed and manufactured in America

    Details

    Parameter Specification
    Dimensions 3” (W) X 3” (H)
    Mounting Style Wall Mount
    Standard Lengths 2’, 4’, 6’, 8’, & Continuous Runs
    Finishes Powder Coated & Anodized
    Housing Material Extruded, Recycled Aluminum
    Warranty 5-Year Warranty
    Sustainability Declare Listed & Red List Free
    LED Performance 1,500 lm/ft, 150 lm/W Efficacy
    LED Choices Static White & Tunable White
    Optics Choices Flush Lens & Regressed Lens
    CRI / CCT 80/90/95+, 2700K to 6500K
    Driver Options Factory, Lutron & eldoLED
    Emergency Backup Emergency Circuit & Battery
    Compatible Controls Lutron, Casambi, Cooper, nLight
