PROSlot2 Recessed

1 3

SKU: PSL2-R

PROSlot2 Recessed is a 2" aperture linear LED for mud-in or grid T-bar installations, delivering 1,500 lm/ft at 150 lm/W with an integral driver. SmartBeam® optics and field-serviceable components deliver broad beam control in a compact form.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

PROSlot2 Recessed is a linear recessed fixture bringing SmartBeam® capabilities to a 2” form factor with an integral driver providing best-in-class efficiency and beam control options. The PROSlot2 Recessed is designed to be specification grade with a wide range of beam options, high CRI, and circadian options. The 2″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROSlot2 also comes with a range of accessories, mounts, and skins that provide an easy route to customization and performance enhancements.

Features

2″ aperture
1,500 lm/ft, 150 lm/W efficacy
Install onto drywall or grid t-Bar
Field serviceable driver, LED engine and optics
Symmetric and asymmetric beam distributions
BABAA compliant, designed and manufactured in America

Details

Parameter	Specification
Dimensions	2” (W) X 4” (H)
Mounting Style	Recessed; Mud-In or Grid T-Bar
Standard Lengths	2’, 4’, 6’, 8’, & Continuous Runs
Finishes	Powder Coated & Anodized
Housing Material	Extruded, Recycled Aluminum
Warranty	5-Year Warranty
Sustainability	Declare Listed & Red List Free
LED Performance	1,500 lm/ft, 150 lm/W Efficacy
LED Choices	Static White & Tunable White

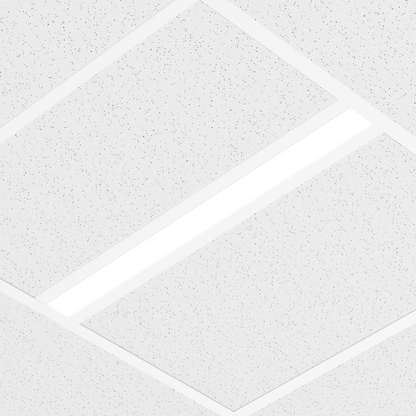

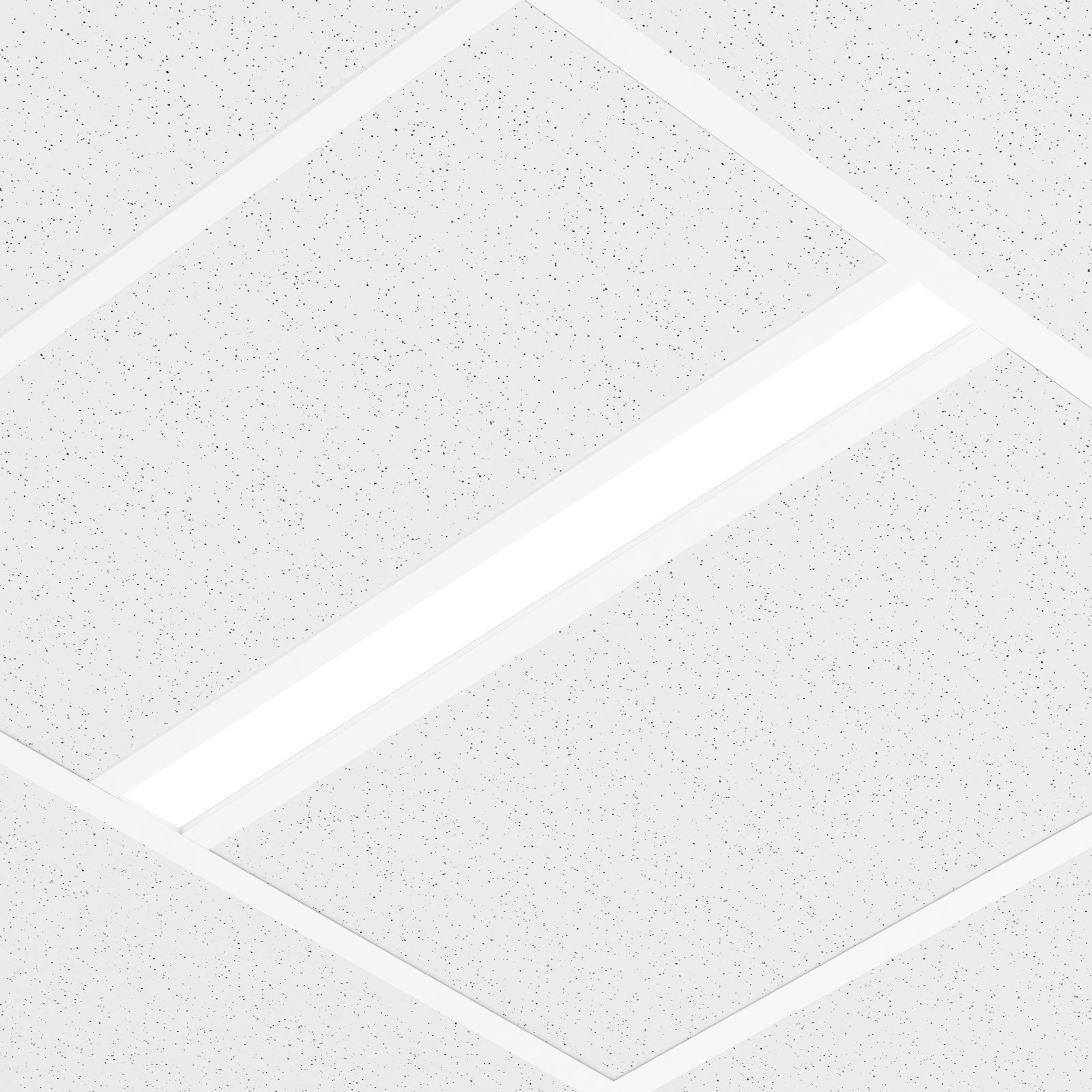

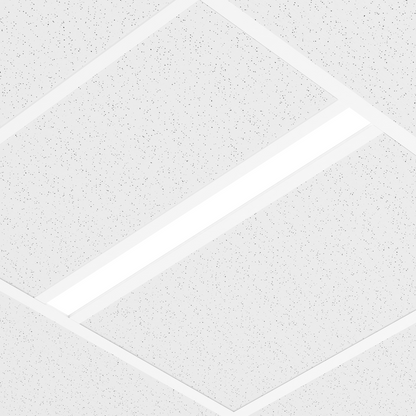

Optics Choices	Flush Lens & Regressed Lens
CRI / CCT	80/90/95+, 2700K to 6500K
Driver Options	Factory, Lutron & eldoLED
Emergency Backup	Emergency Circuit & Battery
Compatible Controls	Lutron, Casambi, Cooper, nLight
