PRORail

1 1

SKU: PRORail

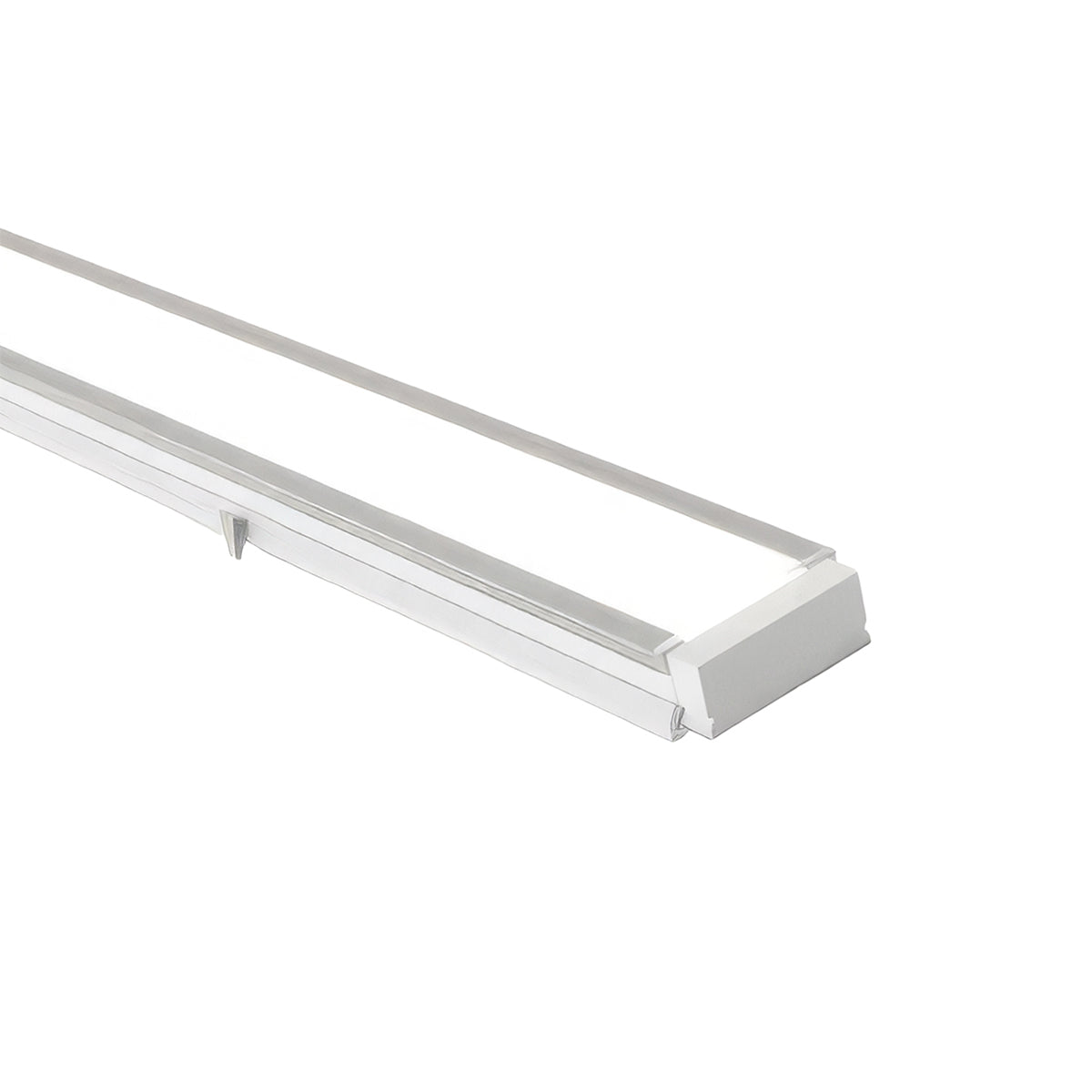

PRORail is a sub-1" ultra-slim linear LED offering 1,000 lm/ft at 155 lm/W with symmetric and asymmetric beam control. BABAA-compliant and daisy-chain-enabled up to 8', it's designed for surface-mounted cove and accent applications.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

The PRORail is part of the innovative PRORail family. It is a sub 1″, ultra-slim and compact LED linear products providing best-in-class efficiency and beam control options. The PRORail is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. COVA Rail uses engineered light engines with fully customizable choices for lumen output, CCT, and CRI. Designed to be surface mounted. PRORail uses a remote driver and can be used in a daisy chain format.

Serving dry environments, with a damp environment option available, the LUMACove1 has excellent asymmetric light throwing characteristics capable of satisfying the demanding needs of most specifiers and architects.

Features

Ultra-slim, sub 1” form factor
1,000 lm/ft, 155 lm/W efficacy
Symmetric and asymmetric beam distributions
Daisy chain enabled up to 8' on one driver
BABAA compliant, designed and manufactured in America

Technical Specifications

Parameter	Specification
Dimensions	0.95” (W) X 0.375” (H)
Mounting Style	Surface Mount
Standard Lengths	1’, 2’, 3’, & 4’
Finishes	Powder Coated & Anodized
Housing Material	Extruded, Recycled Aluminum
Warranty	5-Year Warranty
Sustainability	Declare Listed & Red List Free
LED Performance	1,000 lm/ft, 150 lm/W Efficacy
LED Choices	Static White & Tunable White
Optics Choices	Flat Lens, Cosine Optic & Dome Lens
CRI / CCT	80/90/95+, 2700K to 6500K
Driver Options	Factory, Lutron & eldoLED
Emergency Backup	Emergency Circuit & Battery
Compatible Controls	Lutron, Casambi, Cooper, nLight
Power Cord	6”, 12”, 24” & 48”
