Profile – LIA is an ultra-slim linear luminaire (0.63"W × 0.68"H) manufactured in the USA with customizable lengths and 60° or 90° beam angles, ideal for museum case lighting, pathways, signage, and handrail applications.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

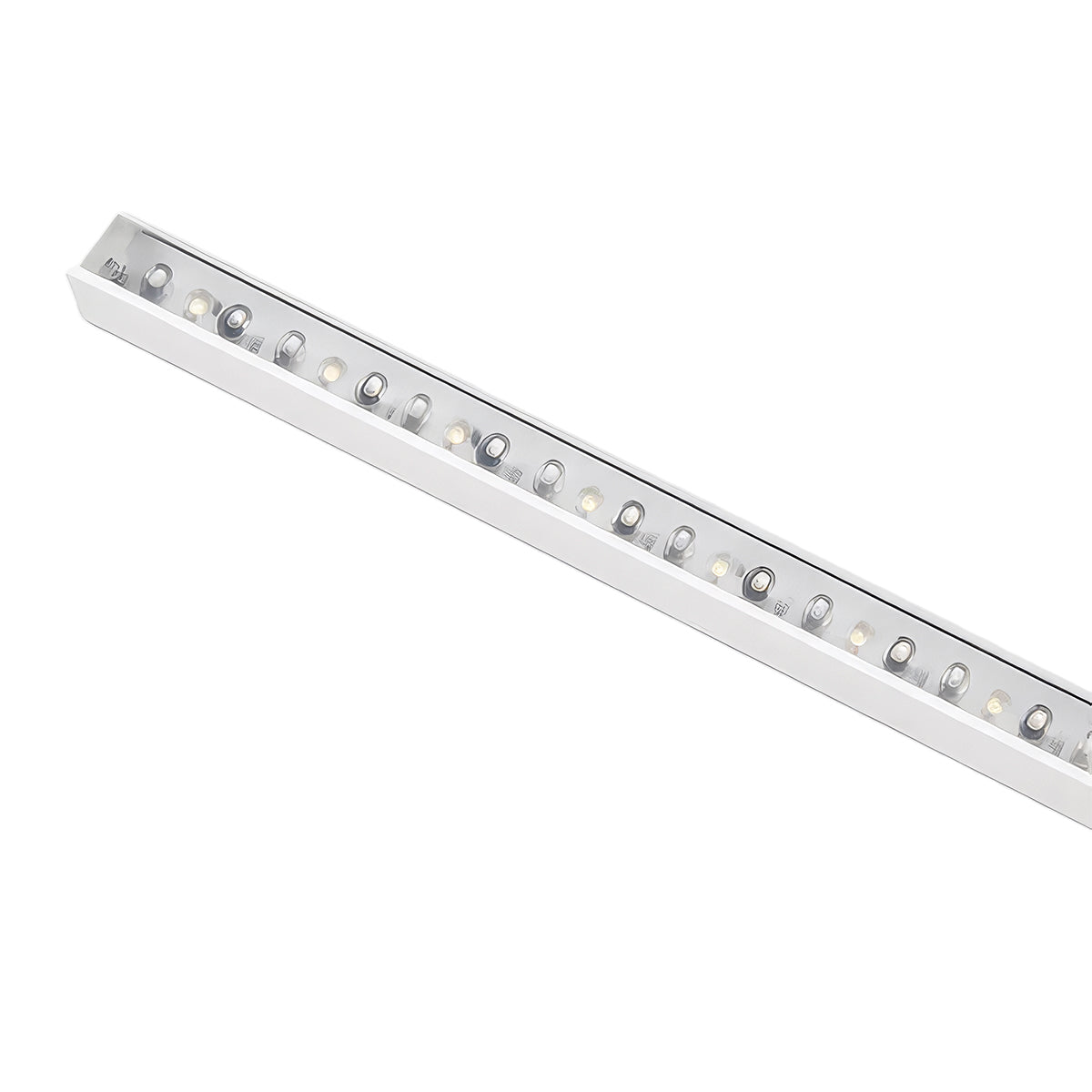

The LIA linear luminaire is only 0.63″ wide by 0.68″ tall. LIA relies upon state-of-the-art LED technology, is manufactured in USA to exacting standards and tight LED spacing to ensure the delivery of illumination uniformity. Delivering a medium 60° beam angle or wide 90° beam angle. The low-profile linear LED solution can be tailored to specific fixture lengths to meet any unique specified requirements. Combining these features with its low watts per foot consumption, the LIA provides one of the highest performing, small form factor, linear LED solutions in the market.

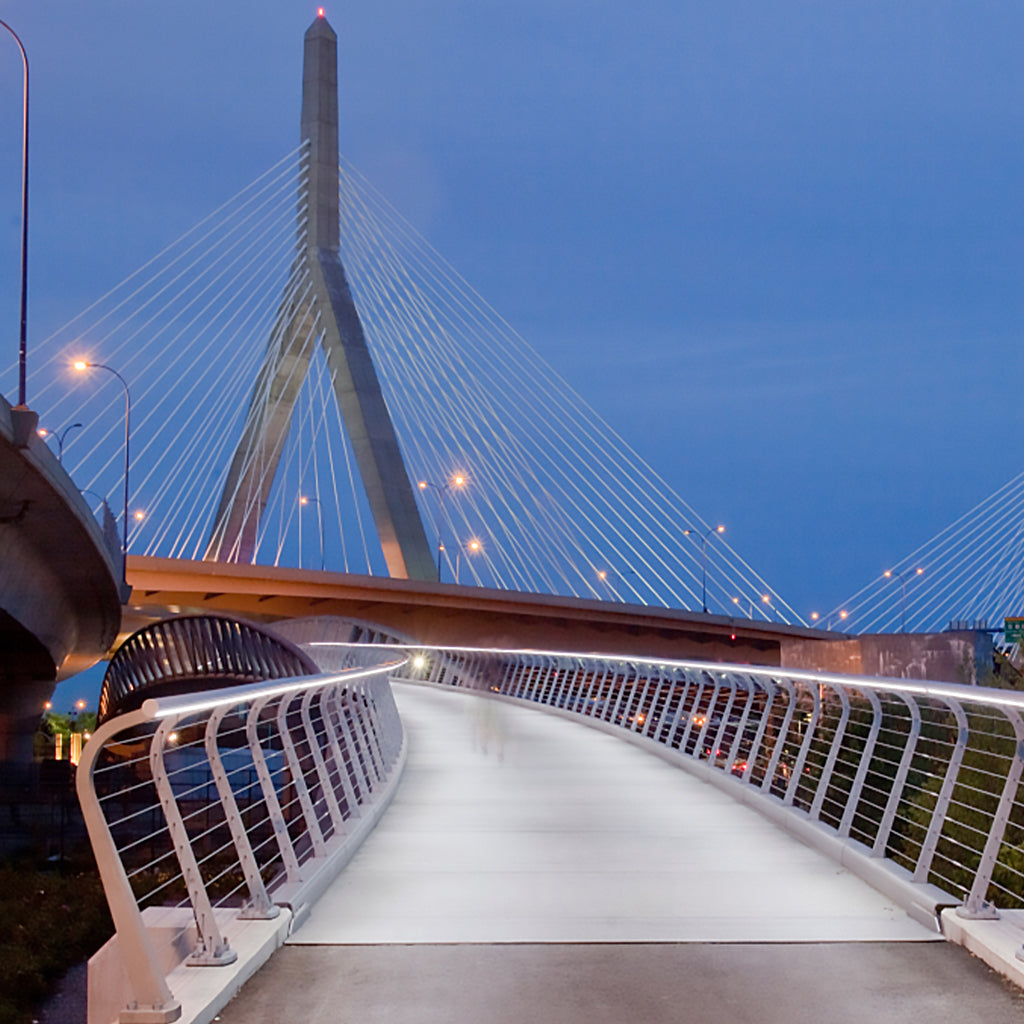

Admired by the museum community users, the LIA has repeatedly demonstrated its museum quality characteristics and been a favorite for case and exhibit lighting globally. The LIA is also specified for general pathway lighting, signage backlighting and handrail illumination applications.

Features

Made in America quality and craftsmanship
Tailored fixture lengths to meet specific requirements
Five standard CCTs and four colored LED options
Ultra-low profile for seamless integration
Tight optic free, sixty-degree or ninety-degree light pattern
Clear lens with a UV stabilized polycarbonate housing

Technical Specifications

Parameter	Specification
Dimensions	0.63″ (W) x 0.68″ (H)
Power	24V Constant Voltage
Lumen Choices	250 (3W), 500 (6W) per Foot
CRI	80/90/95+
Optics	Clear or Diffuse UV Stabilized PC Lens
Beam Angle	60° & 90°
Dimmable	Yes (0-10V)
Onboard Dimming	No
Fixture Length	5” min to 102” max
Fixture Incremental Length	1"
Environmental	Wet / IP67
Warranty	5 Year
