PROCove3

1 1

SKU: PROCove3

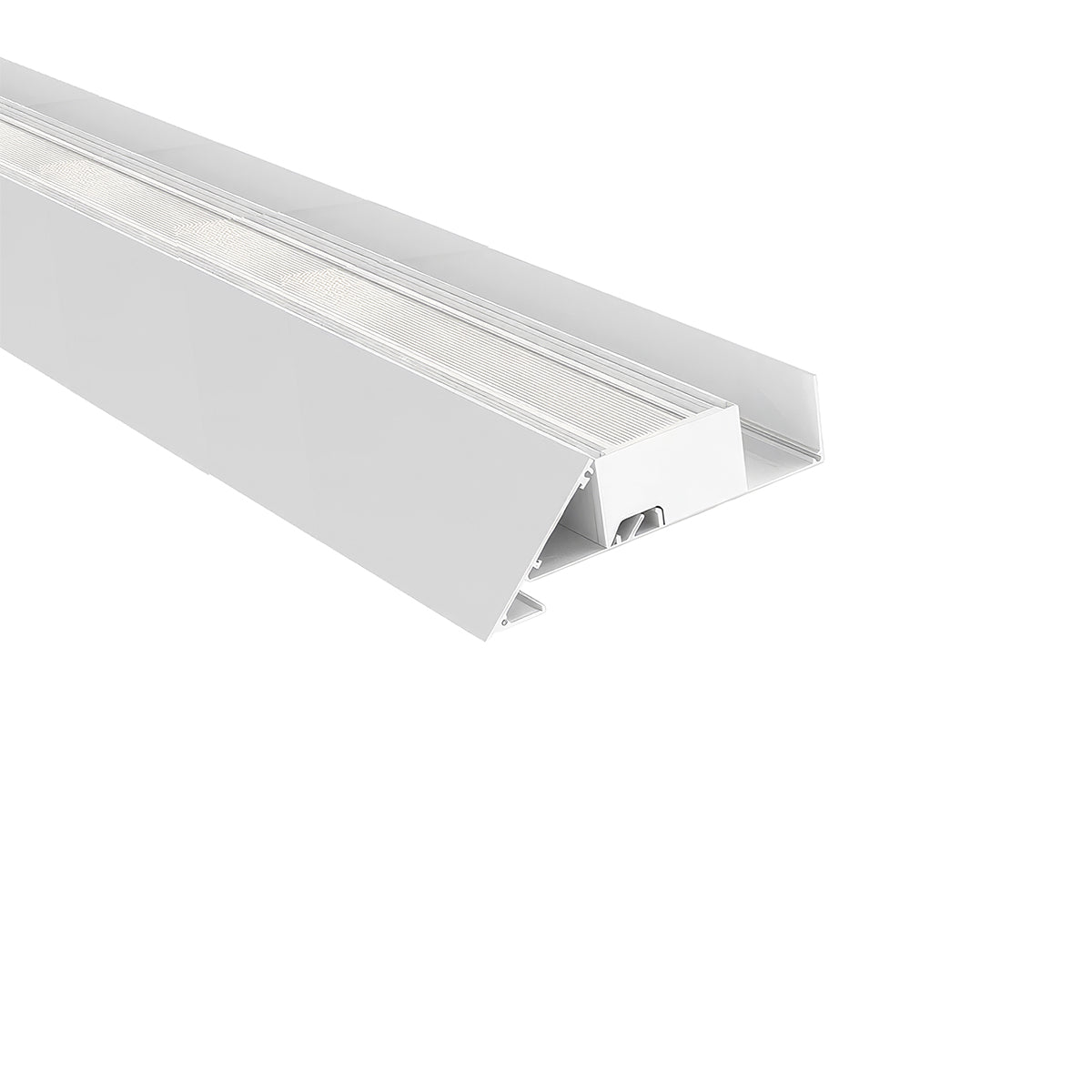

PROCove3 is a 3"-wide, 1"-profile linear cove LED delivering 1,500 lm/ft at 150 lm/W with an integral driver. Armstrong AXIOM® compatible and BABAA-compliant, it supports static white, dim-to-warm, tunable white, and RGBW configurations.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

PROCove3 is part of the innovative family of ultra-slim and compact LED linear products providing best-in-class efficiency and beam control options. PROCove3 is supplied with a range of integral driver choices and is a high performance cove product. PROCove3 is designed to be used in either an on-site built cove or with the Armstrong AXIOM® family of light coves. PROCove3 is specification-grade with high lumen per foot, high CRI, and circadian options. PROCove3 uses engineered light engines with fully customizable choices for lighting distributions, CCT, and CRI. In addition to a full range of static white, PROCove3 can also be supplied with dim-to-warm, tunable white and RGBW light engines.

Features

3” wide aperture with low 1” profile
1,500 lm/ft, 150 lm/W efficacy
Compatible with Armstrong® AXIOM® Cove
Designed with an integral driver
Symmetric and asymmetric beam distributions
BABAA compliant, designed and manufactured in America

Details

Parameter	Specification
Dimensions	3” (W) X 1” (H)
Mounting Style	Cove Mount
Standard Lengths	1’, 2’, 3’, 4’, 6' & 8'
Finishes	Powder Coated & Anodized
Housing Material	Extruded, Recycled Aluminum
Warranty	5-Year Warranty
Sustainability	Declare Listed & Red List Free
LED Performance	1,500 lm/ft, 150 lm/W Efficacy
LED Choices	Static White & Tunable White
Optics Choices	Flush Lens
CRI / CCT	80/90/95+, 2700K to 6500K
Driver Options	Factory, Lutron & eldoLED
Emergency Backup	Emergency Circuit & Battery
Compatible Controls	Lutron, Casambi, Cooper, nLight
Power Cord	6", 12" 24" & 48"
