PROBeam3 Perimeter

1 1

SKU: PROBeam3 Perimeter

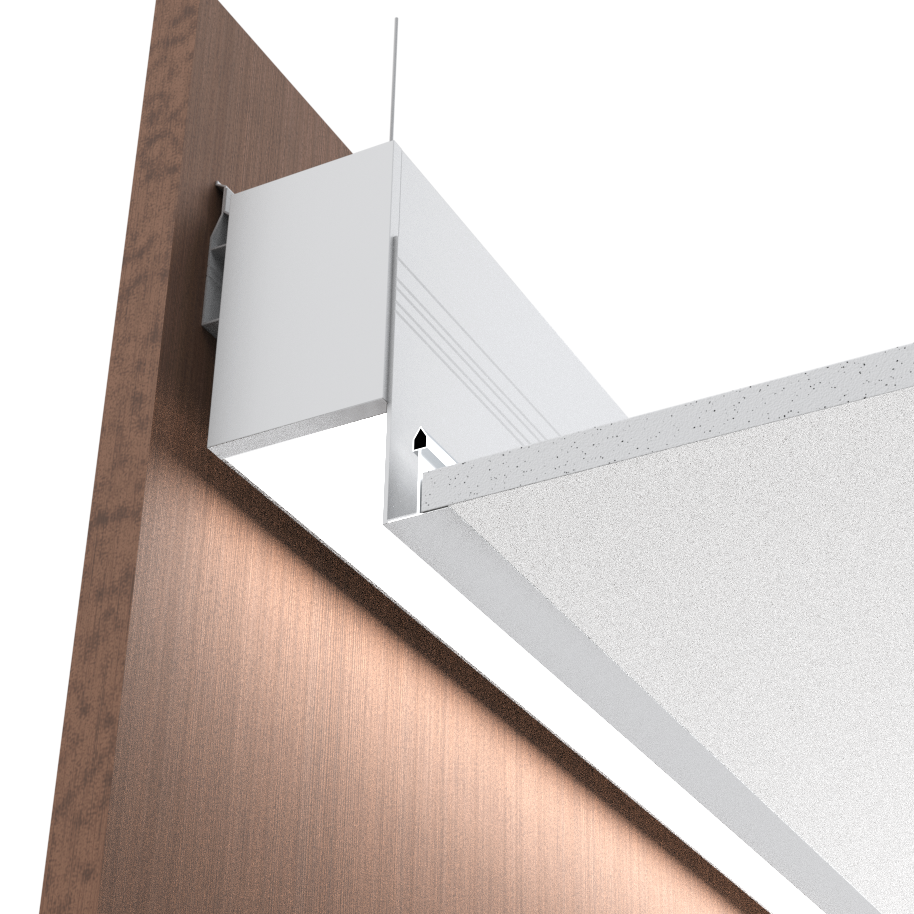

PROBeam3 Perimeter is a 3" aperture recessed linear LED for grid or drywall perimeter applications, delivering 1,500 lm/ft at 150 lm/W. SmartBeam® optics, field-serviceable components, and BABAA compliance make it a specification-grade solution.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

PROBeam3 Perimeter is a 3″ aperture linear recessed fixture for grid, drywall or hard surface applications. PROBeam3 brings SmartBeam® capabilities providing wide, narrow, grazer and asymmetric optics choices. The PROBeam3 is designed to be specification grade with a wide range of high quality LED options, including high CRI, full spectrum sunlight and circadian options. The 3″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROBeam3 also comes with a range of accessories, mounting options, and finishes that provide an easy route to customization and performance enhancements.

Features

3″ aperture
1,500 lm/ft, 150 lm/W efficacy
Install onto drywall or grid t-Bar
Field serviceable driver, LED engine and optics
Symmetric and asymmetric beam distributions
BABAA compliant, designed and manufactured in America

Details

Parameter	Specification
Dimensions	3” (W) X 4.75” (H)
Mounting Style	Recessed Perimeter
Standard Lengths	2’, 4’, 6’, 8’, & Continuous Runs
Finishes	Powder Coated & Anodized
Housing Material	Extruded, Recycled Aluminum
Warranty	5-Year Warranty
Sustainability	Declare Listed & Red List Free
LED Performance	1,500 lm/ft, 150 lm/W Efficacy
LED Choices	Static White & Tunable White
Optics Choices	Flush Lens & Regressed Lens
CRI / CCT	80/90/95+, 2700K to 6500K
Driver Options	Factory, Lutron & eldoLED
Emergency Backup	Emergency Circuit & Battery
Compatible Controls	Lutron, Casambi, Cooper, nLight
Power Cord	24"
