PROBeam2 Wall

1 4

SKU: PROBeam2 Wall

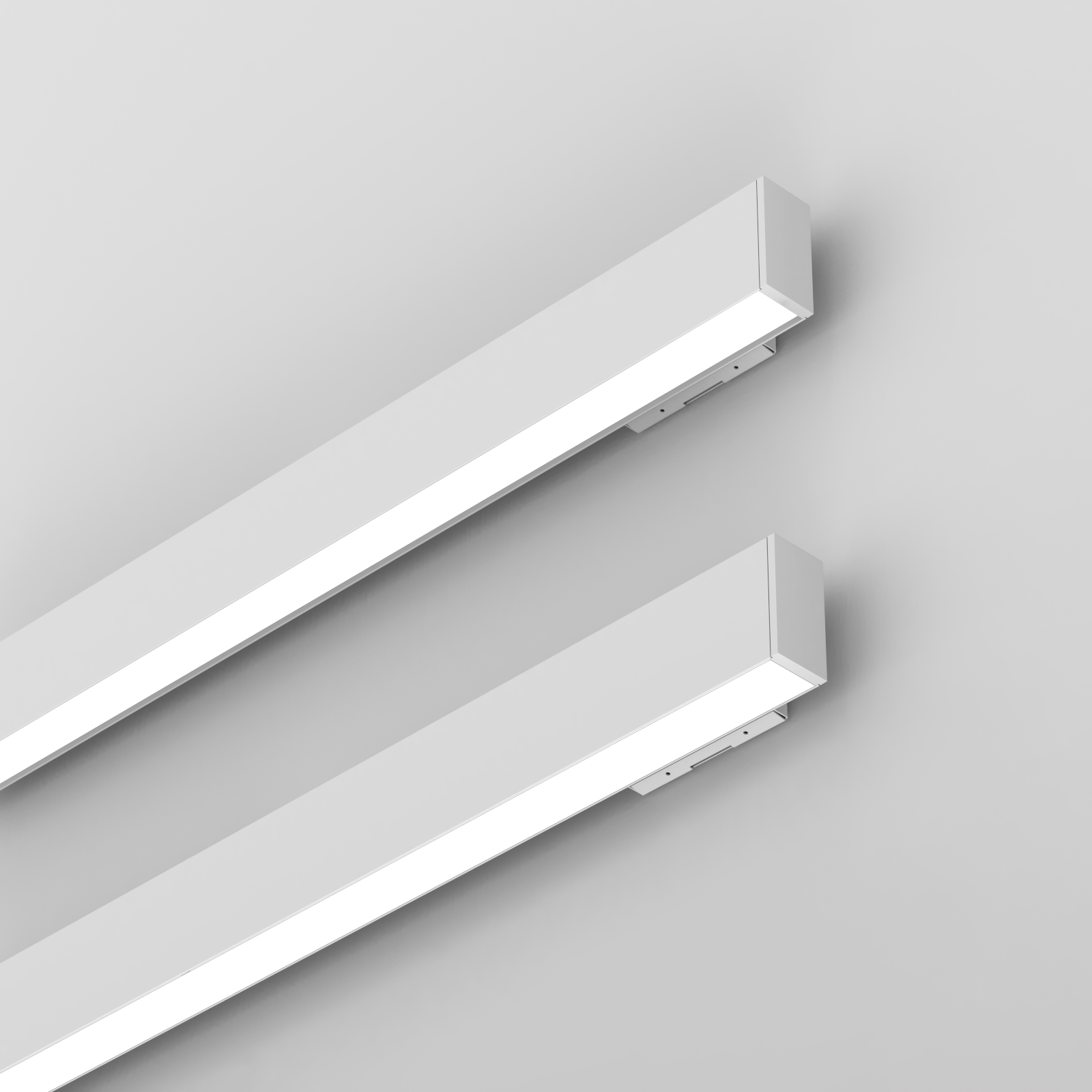

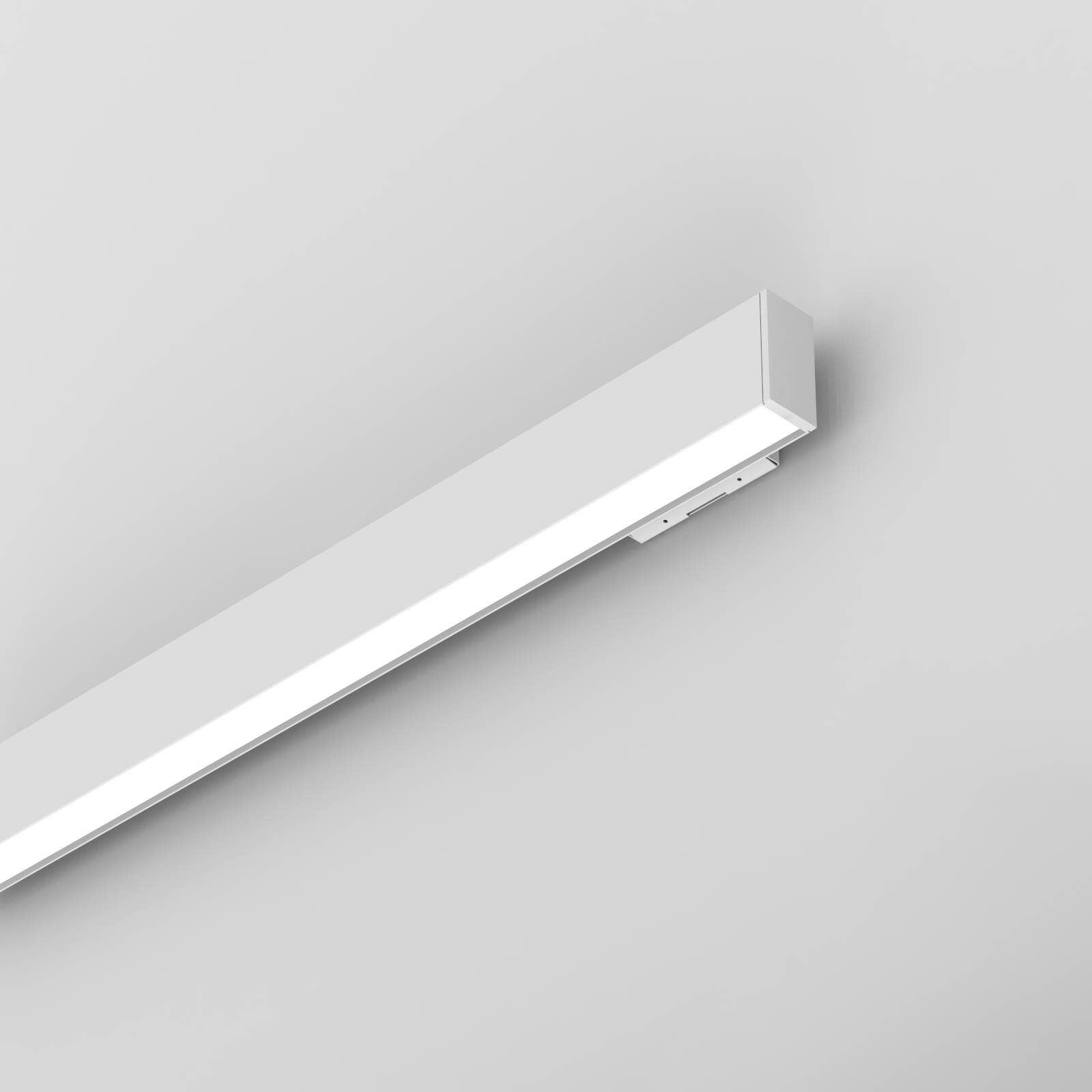

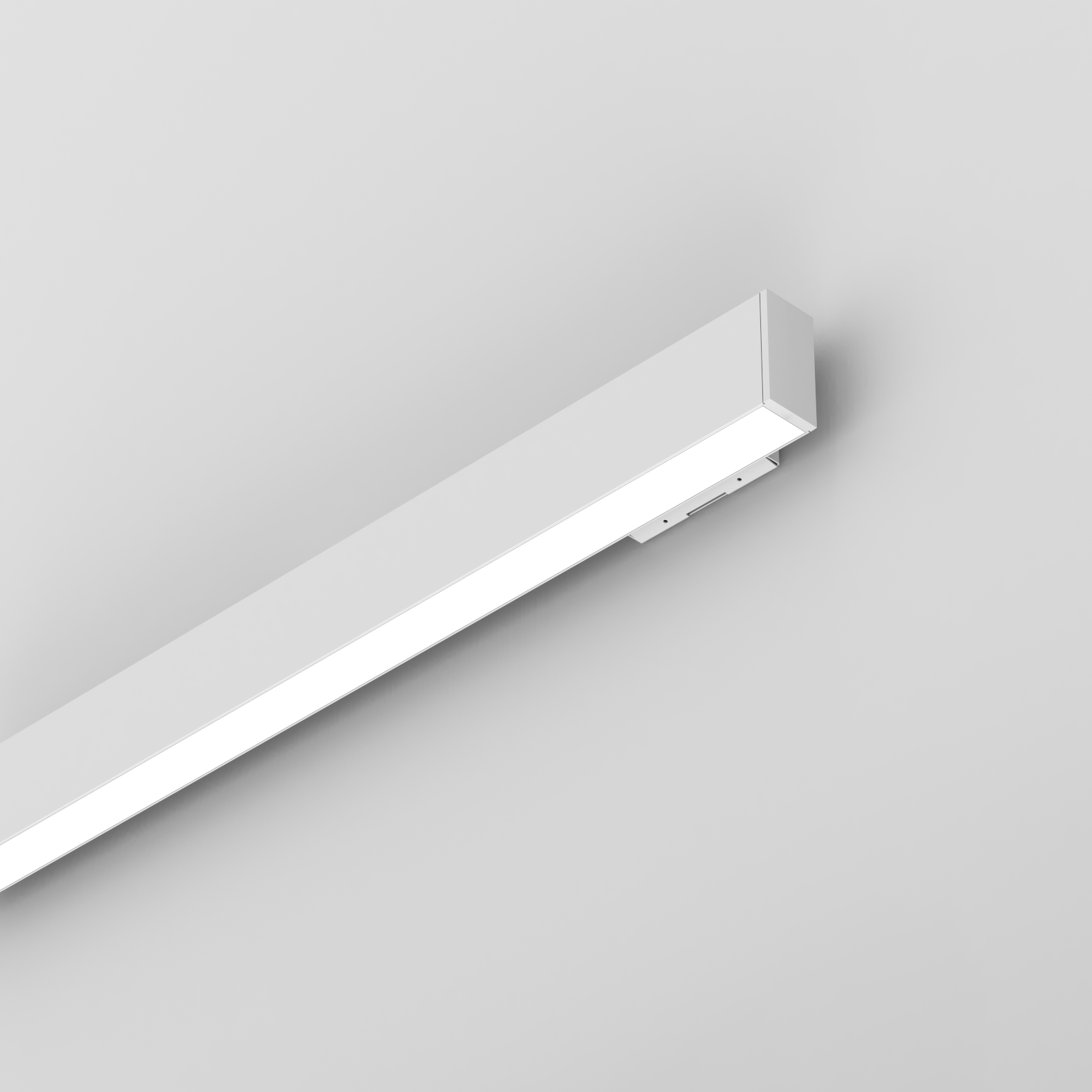

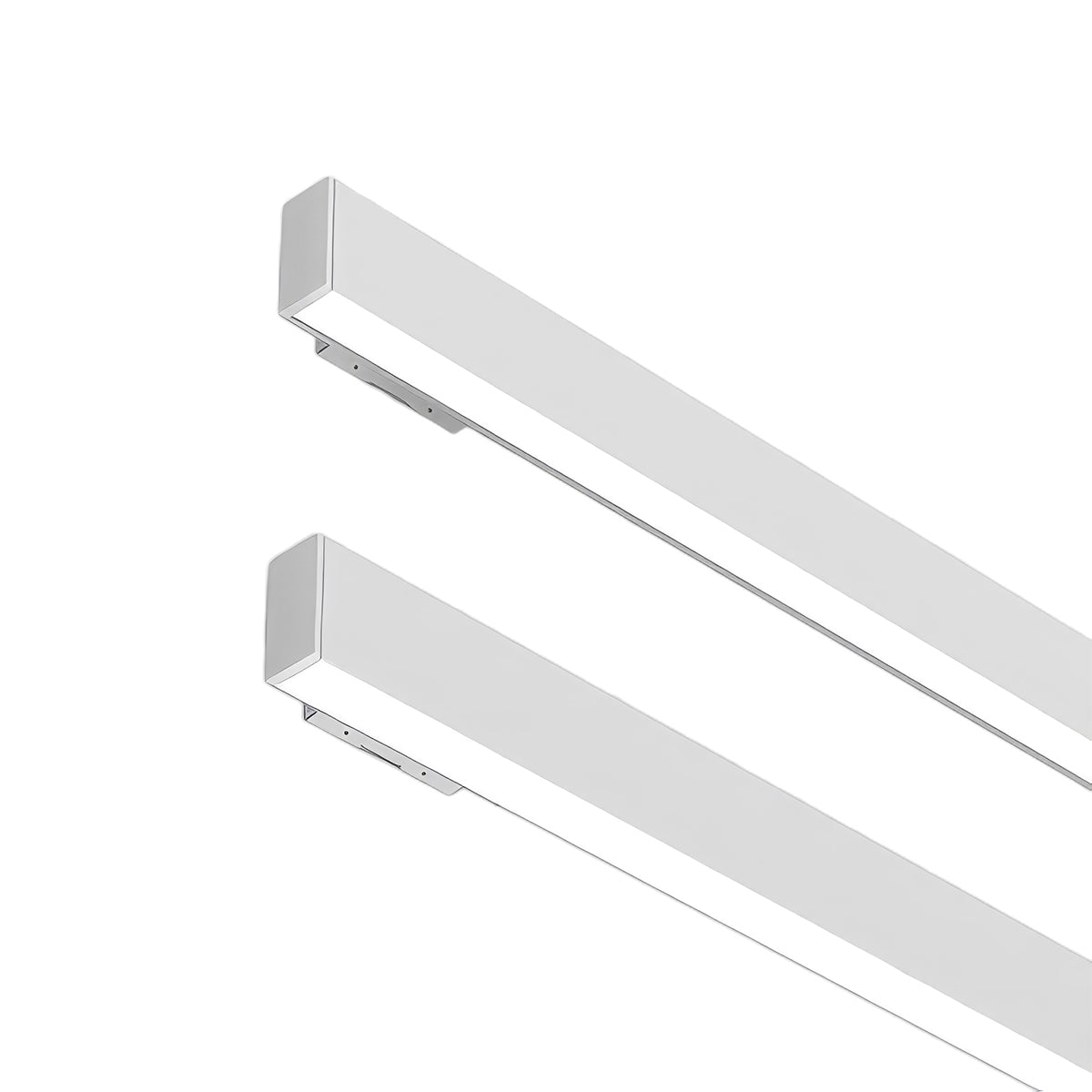

PROBeam2 Wall is a 2" aperture wall-mount linear LED delivering 1,500 lm/ft at 150 lm/W with SmartBeam® optics for symmetric and asymmetric distributions. It supports direct and indirect light with field-serviceable, BABAA-compliant components.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

PROBeam2 Wall brings SmartBeam® capabilities to a 2” form factor with an integral driver providing best-in-class efficiency and beam control options. PROBeam2 Wall is designed to be specification grade with a wide range of beam options, high CRI, and circadian options. The 2″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROBeam2 Wall also comes with a range of accessories, mounting options, and finishes that provide an easy route to customization and performance enhancements.

Features

2″ aperture
1,500 lm/ft, 150 lm/W efficacy
Install onto drywall or grid t-Bar
Field serviceable driver, LED engine and optics
Supports direct & indirect light
Symmetric and asymmetric beam distributions
BABAA compliant, designed and manufactured in America

Details

Parameter	Specification
Dimensions	2” (W) X 4” (H)
Mounting Style	Wall Mount
Standard Lengths	2’, 4’, 6’, 8’, & Continuous Runs
Finishes	Powder Coated & Anodized
Housing Material	Extruded, Recycled Aluminum
Warranty	5-Year Warranty
Sustainability	Declare Listed & Red List Free
LED Performance	1,500 lm/ft, 150 lm/W Efficacy
LED Choices	Static White & Tunable White
Optics Choices	Flush Lens & Regressed Lens
CRI / CCT	80/90/95+, 2700K to 6500K
Driver Options	Factory, Lutron & eldoLED
Emergency Backup	Emergency Circuit & Battery
Compatible Controls	Lutron, Casambi, Cooper, nLight
