LumaRail VOfx

  • LumaRail VOfx - Lighting Fixtures - Prolume Lighting
1 1
SKU: LumaRail – VOfx

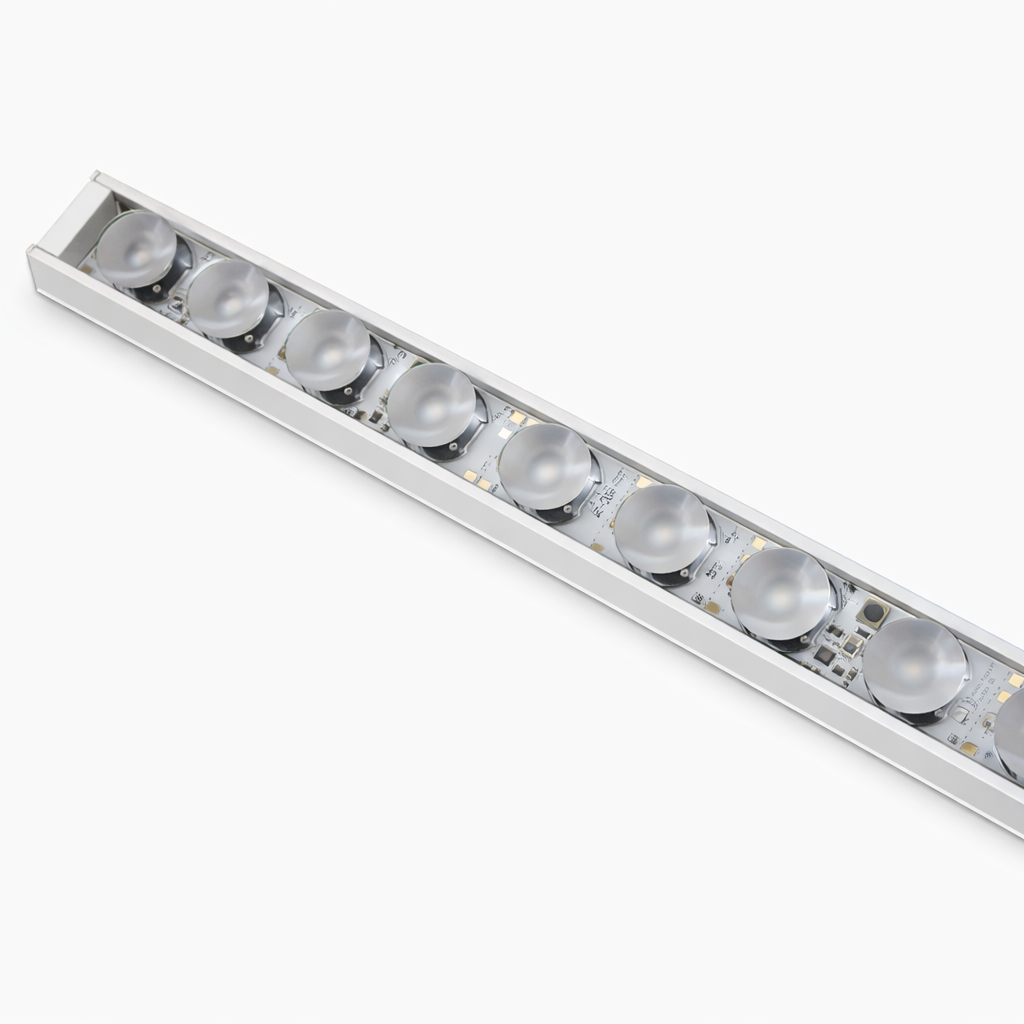

LumaRail VOfx adds precision optics to a 1.2"-pitch light engine for superior wall grazing, cove, and rotunda lighting. Powder-coated aluminum housing, onboard 0–10V dimming, and fixed or articulating mount options deliver 744–1,004 lm/ft.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    The VOfx adds several optical options to a one-point-two (1.2) inch pitch light engine.  These optics help to achieve clean beam sculpting and deliver superior coverage in grazing applications.

    VOfx is constructed of a sturdy powder coated, low-profile aluminum housing. It is available in standard output and includes onboard 0 – 10 VDC dimming. Available with a standard dry rating, a damp option is also available.  The VOfx linear LED light fixture can be mounted in either a fixed or articulating position to deliver the desired illumination and is revered by specifiers for wall grazing and ceiling, rotunda & cove lighting applications.

    Features

    • Made in America quality and craftsmanship
    • Five CCTs and four colored LED standard options
    • Customizable fixture lengths, CCT and CRI available
    • Powder coated, low profile aluminum extrusion for seamless integration
    • Fixed and articulating mounting options
    • Daisy chain fixtures for longer runs and energize from a single driver
    • Onboard 0 – 10VDC dimming circuitry

    Technical Specifications

    Parameter Specification
    Lumen Output 744 to 1004
    CRI 80 – 90+
    Beam Angle   15° | 40°  | 50 x 10°
    Lens None
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 6” Min to 87” Max
    Custom Cut Length 1”
    Environmental Dry (Damp Optional)
    Warranty 5 Years
