SKU: LumaRail VO

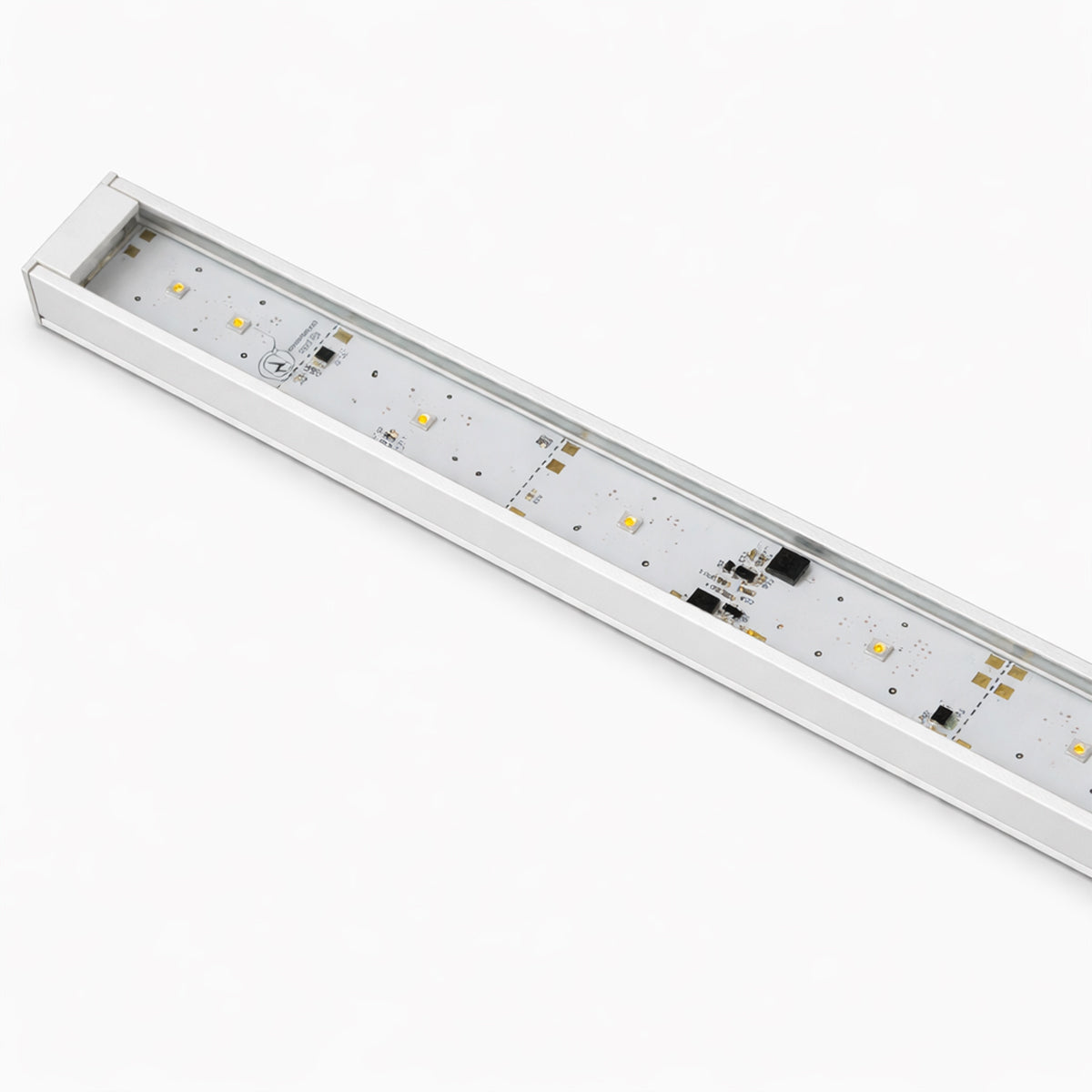

LumaRail VO is a low-profile linear LED built on a 1"-pitch light engine for high lumen output in a compact footprint. Powder-coated aluminum housing, onboard 0–10V dimming, and clear or frosted lens options suit diverse dry and damp applications.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    The LumaRail VO linear LED light fixture has been designed to deliver even greater lumen output through a one-inch pitch light engine.  This configuration makes it an optimum solution for general lighting when significant illumination is required from a low-profile footprint.

    Constructed with a sturdy powder coated aluminum housing, the VO delivers excellent lumen output. Available in standard output solely, the VO includes onboard 0 – 10 VDC dimming with either fixed or articulating mounting options for maximum versatility. VO is offered with either a clear or frosted lens option. It can serve dry environments and has a damp option available when specified. This fixture is a versatile solution for numerous applications.  It remains a staple for specifiers seeking to create a unique desired effect.

    Features

    • Made in America quality and craftsmanship
    • Five CCTs and four colored LED standard options
    • Customizable fixture lengths, CCT and CRI available
    • Powder coated, low profile aluminum extrusion for seamless integration
    • Fixed and articulating mounting options
    • Daisy chain fixtures for longer runs and energize from a single driver
    • Onboard 0 – 10VDC dimming circuitry

    Technical Specifications

    Parameter Specification
    Lumen Output 700 to 1181
    CRI 80 – 90+
    Beam Angle 115°
    Lens Clear & Frosted
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 6” Min to 87” Max
    Custom Cut Length 1”
    Environmental Dry (Damp Optional)
    Warranty 5 Years
