LumaRail – LOfx

  • LumaRail – LOfx - Lighting Fixtures - Prolume Lighting
1 1
SKU: LumaRail – LOfx

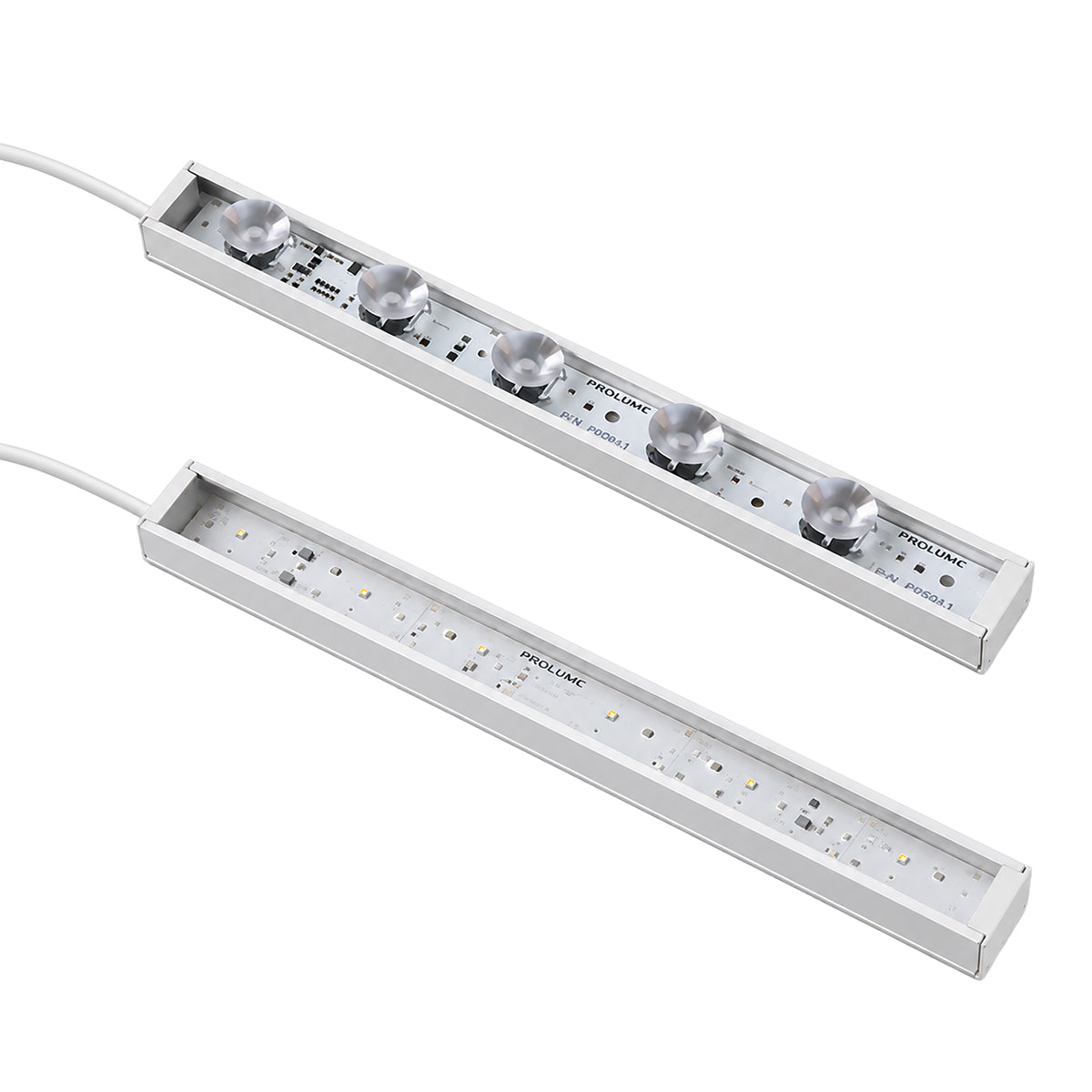

LumaRail – LOfx is a USA-made low-profile linear LED with standard and high output options, onboard 0–10V dimming, and multiple beam-sculpting lenses. Fixed or articulating mounts support diverse applications in dry and damp environments.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Manufactured in America and constructed of a sturdy powder coated aluminum housing, the LOfx linear LED fixture utilizes industry leading optics to deliver superior lumen output in an attractive low-profile package. Available in both standard output and high output, the LOfx includes onboard 0 – 10 VDC dimming and can be mounted in either a fixed or articulating position to deliver the optimum desired solution for nearly any linear application.

    Appropriate for dry environments, with a damp option available, the LOfx satisfies the most demanding needs for specifiers around the globe. Adding optical elements to the outstanding feature set makes it apparent why LOfx has been chosen by specifiers for low profile and broad light distribution applications repeatedly.

    Features

    • Made in America quality and craftsmanship
    • Five CCTs and four colored LED standard options
    • Customizable fixture lengths, CCT and CRI available
    • Powder coated, low profile aluminum extrusion for seamless integration
    • Fixed and articulating mounting options
    • Daisy chain fixtures for longer runs and energize from a single driver
    • Multiple beam sculpting lens options
    • Onboard 0 – 10VDC dimming circuitry

    Technical Specifications

    Parameter Specification
    Lumen Output 444 to 772
    CRI 80 – 90+
    Beam Angle 15° | 40° | 50 x 10°
    Lens None
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 6” min to 102” max
    Incremental Length 1"
    Environmental Dry (Damp Optional)
