LumaRail – LO

1 2

SKU: LumaRail – LO

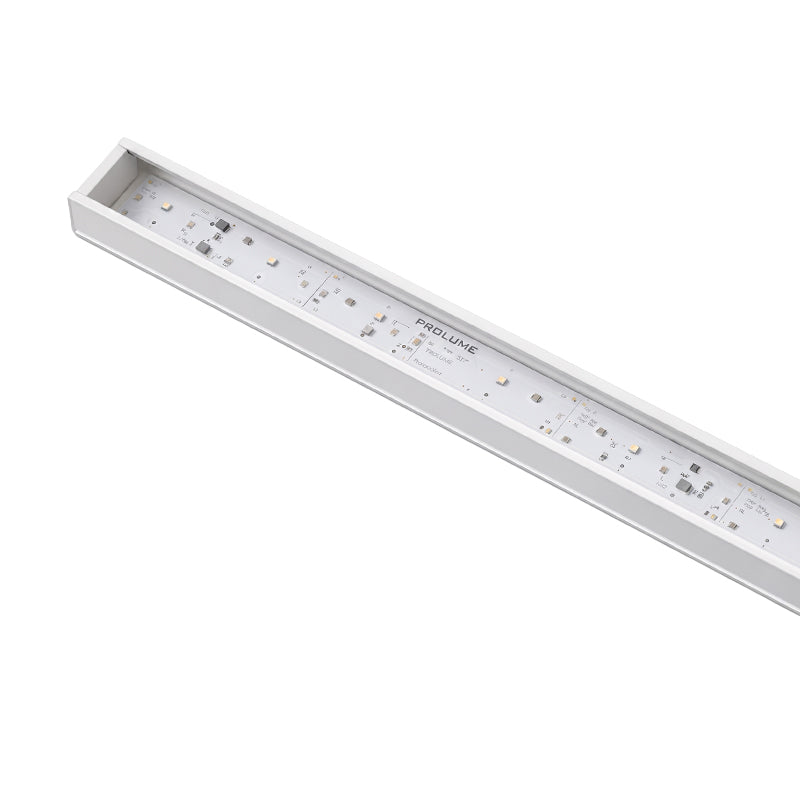

LumaRail – LO is an ultra-slim LED linear (0.50"H × 1.25"W), BABAA-compliant and USA-made. Standard and high output with onboard 0–10V dimming, clear or frosted lens, and fixed or articulating mounts suit cove, accent, and task lighting.

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Product
Datasheet

RoHS 3
Certificate

Warranty
Information

QUICK SPECS

LumaRail is only 0.50″ tall and 1.25″ wide. Manufactured in America, it is BABAA compliant and constructed with a sturdy extruded aluminum housing. The LumaRail LO linear LED fixture delivers superior lumen output from a very low-profile package. Produced in both standard output and high output, the LO includes onboard 0 – 10 VDC dimming and both fixed and articulating mounting options to deliver the maximum versatility for nearly any linear application.

Offered with either a clear or frosted lens option and able to serve dry environments, with a damp option available, the LO satisfies many needs for specifiers around the globe. Touting all these features, it is easy to understand why LO has been specified as the ideal solution for demanding applications that include cove, accent and task lighting.

Features

Made in America quality and craftsmanship
Five CCTs and four colored LED standard options
Customizable fixture lengths, CCT and CRI available
Powder coated, low profile aluminum extrusion for seamless integration
Fixed and articulating mounting options
Daisy chain fixtures for longer runs and energize from a single driver
Multiple lens options
Onboard 0 – 10VDC dimming circuitry

Technical Specifications

Parameter	Specification
Lumen Output	423 to 844
CRI	80 – 90+
Beam Angle	115°
Lens	Clear & Frosted
Dimmable	Yes
Onboard Dimming	Yes
Fixture Length	6” min to 102” max
Incremental Length	1"
Environmental	Damp
