LumaBlast – UCfx

  • LumaBlast – UCfx - Lighting Fixtures - Prolume Lighting
1 1
SKU: LumaBlast – UCfx

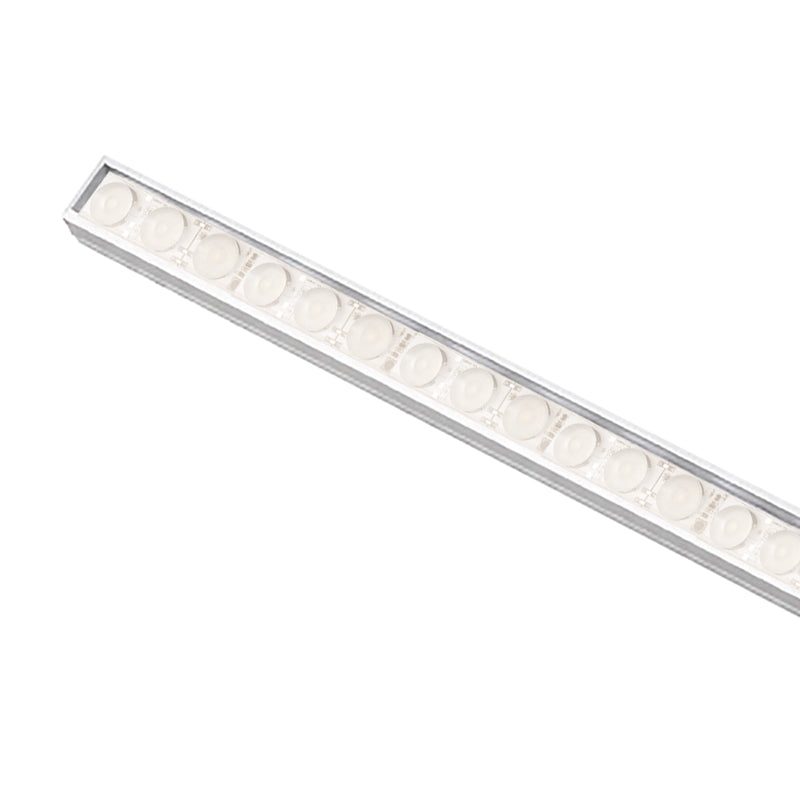

LumaBlast – UCfx delivers shaped beam illumination from a concealed deep-channel aluminum housing. Standard and high output options, clear or frosted lenses, and fixed or articulating mounts make it ideal for backlighting and accent applications.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    When the application requires a shaped beam from a concealed source, specifiers turn to the LumaBlast – UCfx  to fulfill the most demanding linear LED lighting needs.

    The UCfx light engine delivers superior lumen output while remaining discreetly hidden within a powder coated, deep channel aluminum housing. This linear LED light fixture offers a standard and high output option and can be combined with a clear or frosted lens to deliver the precise desired lighting effect. Available with either a fixed or articulating mount and nine standard CCTs/Color options, the UCfx is a perfect solution for back lighting when a concealed source of light and excellent light throw is required.

    Features

    • Made in America quality and craftsmanship
    • Five CCTs and four colored LED standard options
    • Customizable fixture lengths, CCT and CRI available
    • Powder coated, low profile aluminum extrusion for seamless integration
    • Fixed and articulating mounting options
    • Daisy chain fixtures for longer runs and energize from a single driver
    • Multiple lens options
    • Multiple beam sculpting lens options

    Technical Specifications

    Parameter Specification
    Lumen Output 355 to 718
    CRI 80 – 90+
    Beam Angle 15° | 40° | 50 x 10
    Lens Clear
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 6” min to 102” max
    Incremental Length 1"
    Environmental Dry (Damp Optional)
