SKU: LumaBlast – HiCfx

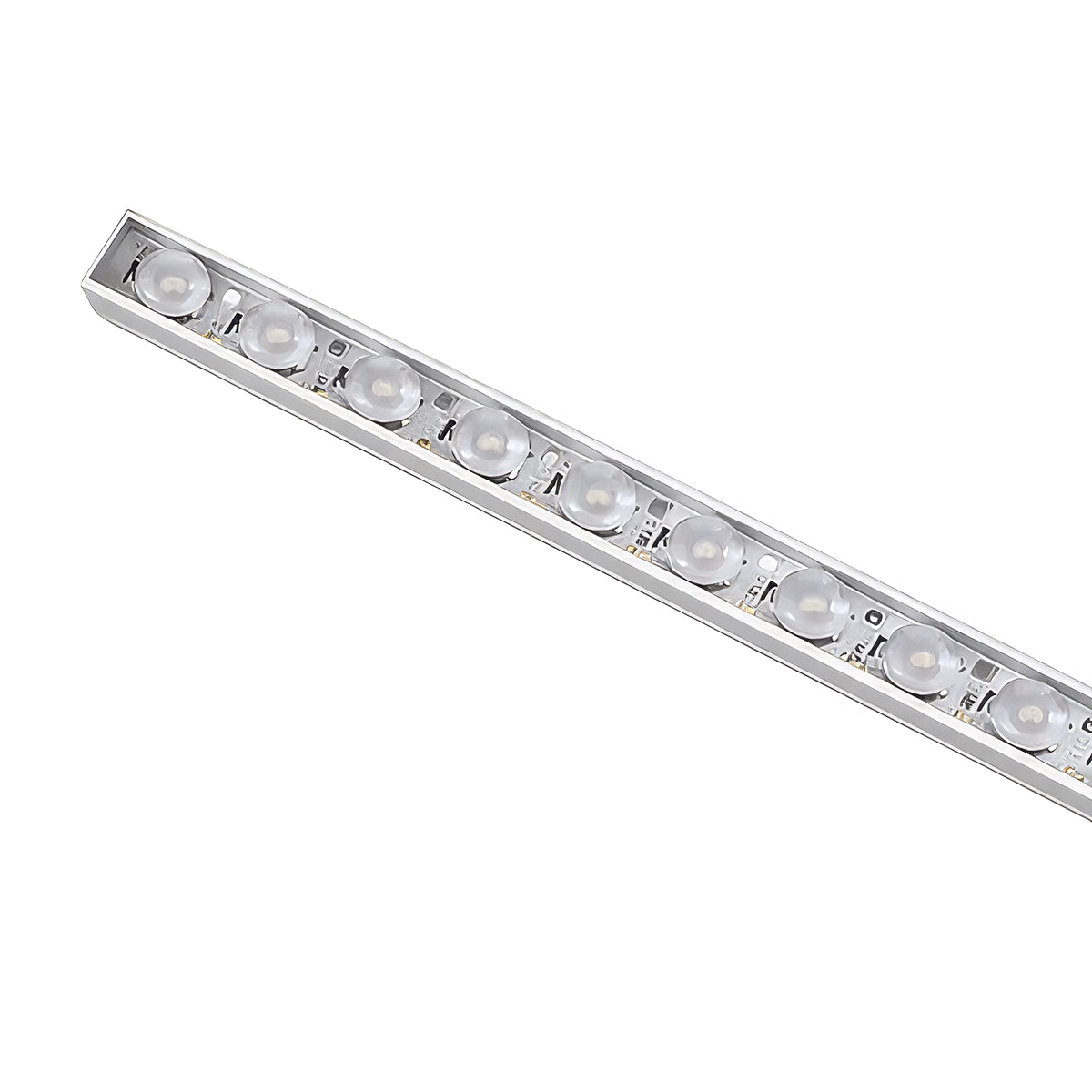

LumaBlast – HiCfx pairs a 1.2"-pitch engine with precision optics for 595–1,141 lm/ft in a powder-coated aluminum housing. Onboard 0–10V dimming and fixed or articulating mounts suit accent and linear applications in dry or damp environments.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Constructed of a rugged powder coated aluminum housing, the linear LED HiCfx fixtures utilizes industry leading optics to deliver superior lumen output in an attractive yet concealing envelope. Available with either standard and high output, the HiCfx includes onboard 0 – 10 VDC dimming and can be mounted in either a fixed or articulating position to deliver the desired lighting solution for nearly any linear application.

    Serving dry environments, with a damp environment option available, the HiCfx has excellent light throwing characteristics capable of satisfying the demanding needs of most specifiers and architects.

    Features

    • Made in America quality and craftsmanship
    • Five CCTs and four colored LED standard options
    • Customizable fixture lengths, CCT and CRI available
    • Powder coated, low profile aluminum extrusion for seamless integration
    • Fixed and articulating mounting options
    • Daisy chain fixtures for longer runs and energize from a single driver
    • Multiple beam sculpting lens options
    • Onboard 0 – 10VDC dimming circuitry

    Details

    Parameter Specification
    Lumen Output 595 to 1141
    CRI 80 – 90+
    Beam Angle  15° | 40° | 50 x 10°
    Lens Clear & Frosted
    Dimmable Yes
    Onboard Dimming Yes
    Fixture Length 6” min to 78” (SO) & 60" (HO) max
    Incremental Length 1"
    Environmental Dry (Damp Optional)
