SKU: Duō – CSW

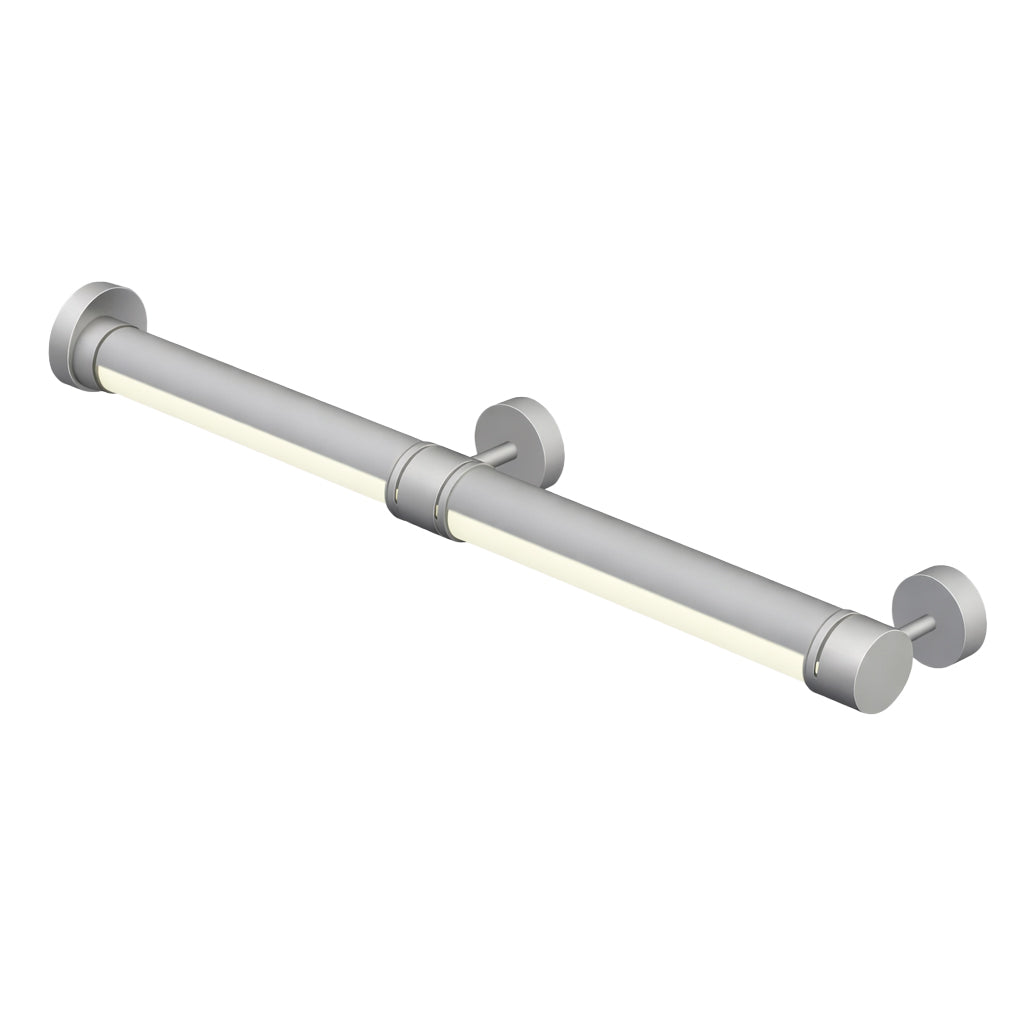

Duō – CSW is a wall-mount linear LED with three standoff options and 150° articulation for upward or downward illumination. Delivering 525+ lm/ft via a dual-row engine, it supports union-coupled runs up to 252? with an optional wet rating.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    The CSW light fixture is designed specifically for wall mount linear applications.  It sports three wall standoff options for positioning the LED fixture.  Accompanied by one-hundred-fifty-degree articulation which can be mounted to illuminate upward or downwards, the applications for CSW are virtually limitless.

    Utilizing the proven dual row LED light engine design, the CSW is available in both a standard and high output configuration capable of delivering over five-hundred-twenty-five (525+) lumens per foot. To expand the CSW versatility, fixtures can be coupled together with union fittings to form a longer continuous fixture run. As with all Prolume fixtures, the CSW is available in one inch increments up to ninety-six inches (96”) as single fixture and up to two-hundred-fifty-two inches (252”) when coupled with the optional unions. Finally the CSW has a wet rating option available.

    Features

    • Made in America quality and craftsmanship
    • Customizable fixture lengths, CCT and CRI available
    • Five CCTs and four colored LED options
    • Natural anodized aluminum or white powder coated finish standard; custom color powder coats available
    • Daisy chain or connect multiple fixtures to a single driver
    • 150° Built-in articulation

    Technical Specifications

    Parameter Specification
    Lumen Output 208 to 528
    CRI 80 – 90+
    Beam Angle 115°
    Lens Frosted
    Dimmable Yes
    Onboard Dimming No
    Fixture Length 8” Min to 96” Max
    Incremental Length 1"
    Environmental Dry, Damp & Wet (IP67)
    Warranty 5 Years
