SKU: DUOCS08SUST

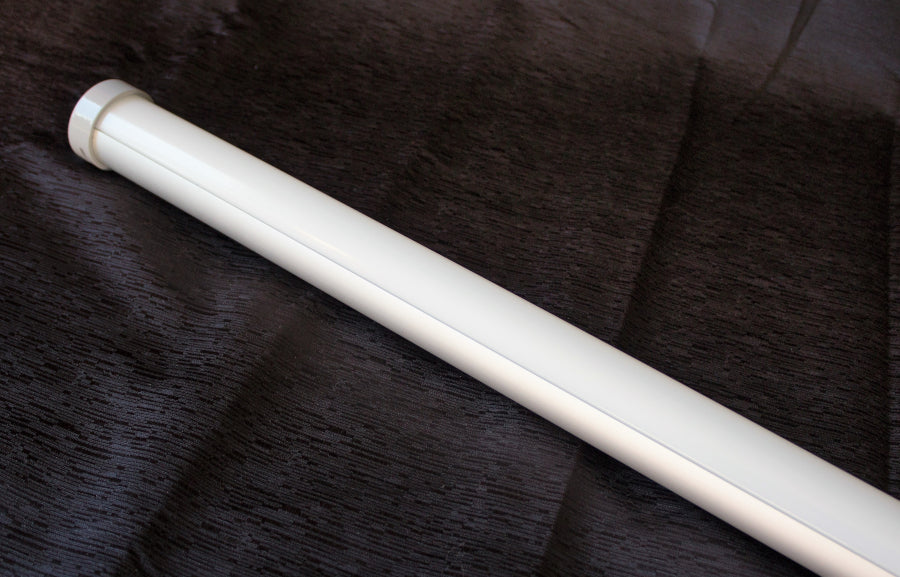

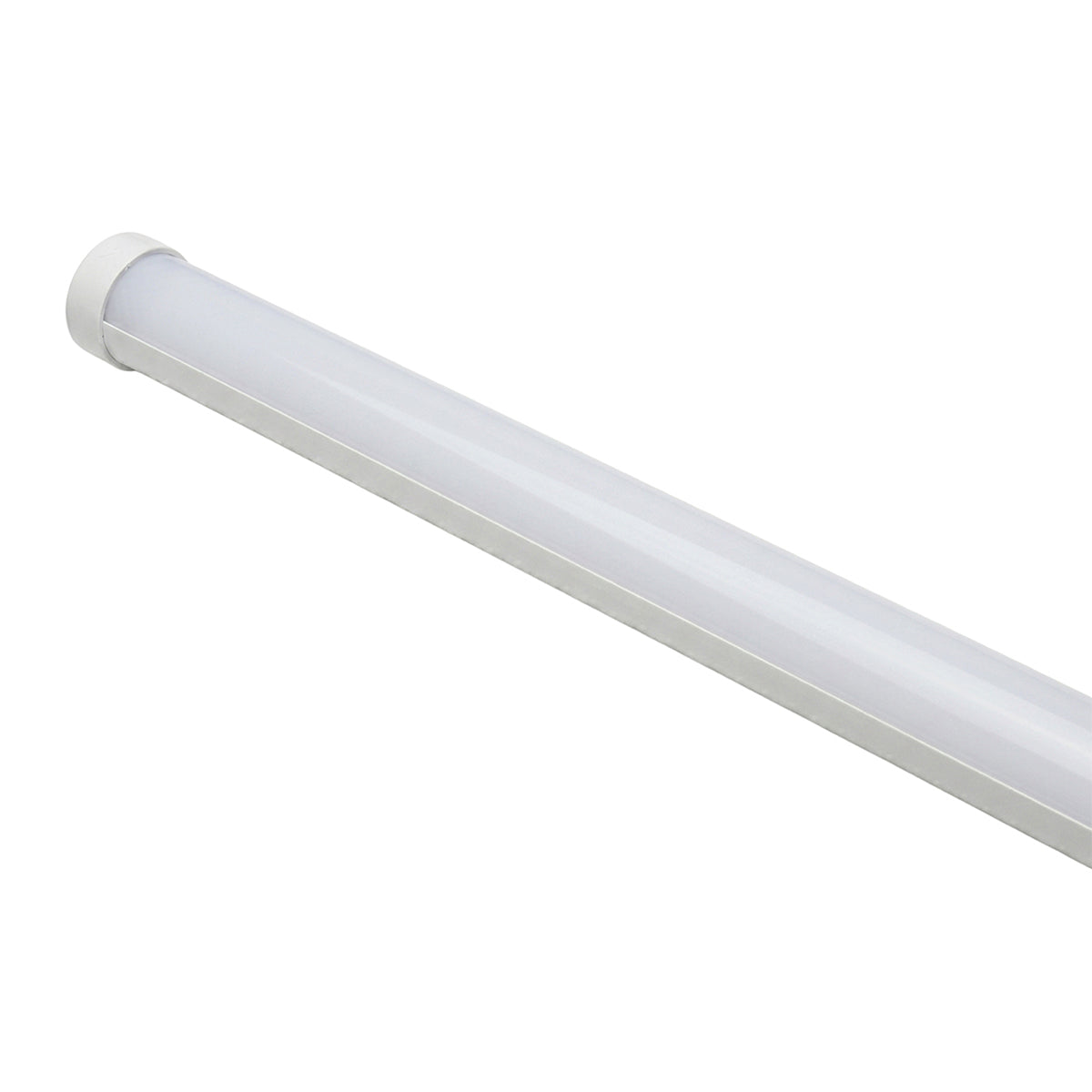

Duō – CS is a pendant or wall-mount linear LED delivering 525+ lm/ft with a 115° beam and 150° articulation. Available in 1" increments up to 96" and configurable in series or parallel for nearly any linear application.


View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

QUICK SPECS

    Based upon a new dual row LED light engine design, the CS is available in both a standard and high output configuration. It is capable of delivering over five-hundred-twenty-five (525+) lumens. The solid extruded aluminum envelop has a one-hundred-seven-degree (107°) lens opening and a beam angle of one-hundred-fifteen degrees (115°). Whether suspension (Pendant) or wall mounted, the CS linear LED light fixture can be articulated one-hundred-fifty-degrees (150°) to illuminate the area precisely.

    Available in one inch increments up to ninety-six-inch (96”) lengths. It can be configured either in series or parallel to a single driver.  This linear LED fixture is only limited by the specifier’s imagination and is certain to help achieve the desired striking visual impression wherever used.

    Features

    • Made in America quality and craftsmanship
    • Customizable fixture lengths, CCT and CRI available
    • Five CCTs and four colored LED options
    • Natural anodized aluminum or white powder coated finish standard
    • Custom color powder coats available
    • Daisy chain configurable wiring to a single driver
    • One-hundred-fifty degree (150°) built-in articulation

    Technical Specifications

    Parameter Specification
    Lumen Output 242 to 528
    CRI 80 – 90+
    Beam Angle 115°
    Lens Frosted
    Dimmable Yes
    Onboard Dimming No
    Fixture Length 8” min to 96” max
    Incremental Length 1"
    Environmental Dry
    Warranty 5 Years
